Busbar Semi Automatic Assembly Line - China

Busbar Semi-Automatic Assembly Line

Product Description

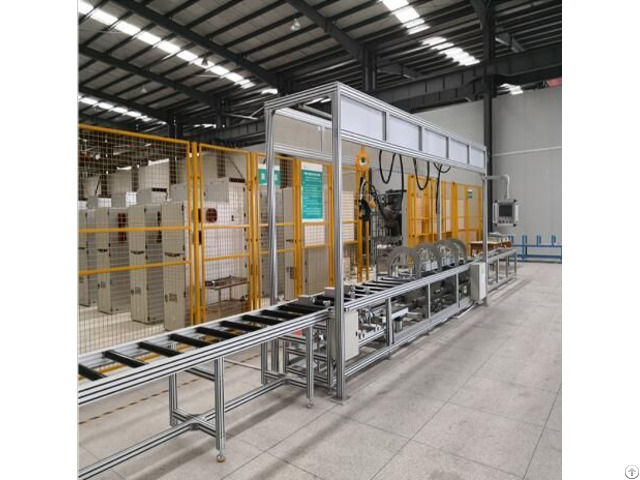

Semi automatic assembly line is composed of three parts, pre-assembly station, automatic reversal station and accessory assembly station.

Operators gather all parts of the busbar and fix them with some fixture tools on the pre-assembly station, move the busbar to the automatic reversal station manually and clamp, and later rivet the busbar manually on one side, reverse 180 degrees and then rivet the other side.

Semi-Automatic Assembly Line Supplier: Kiande Specialized in manufacturing and customizing busbar production machines including Busbar Automatic Production Line, Automatic Assembly Machine, Automatic Busbar Assembly Line, Semi-Automatic Assembly Line, Busbar Manual Assembly Machine, Two-Piece Manual Assembly Machine, Busway System Inspection Line, Busbar Manual Inspection Machine, Busway System Packaging Machine, Busbar Manual Packing Machine, Busbar Profile Cutting Machine, Distribution Board Production Line, Switchgear Production Line, Distribution Box Switch Box Production Line, Switchboard Assembly Line.

No.

Parameters

Model No.

KD-ZDX/H-4-6(4.5)

Maximum Busbar Height 330mm (Single Layer)

Maximum Busbar Length 6000mm

Working Efficiency 2min/3000mm( 2 sets riveting machines)

Riveting Machine Not Included

Nos of Rotator 4 sets (Standard)

Length of Reversal Part 4500mm

Nos of Manual Lifting Fixture 3 Pieces

Length of Manual Operation Station 1500mm

Hanger Aluminum Hanger

Type of Riveting Manual Riveting

Total Power of Equipment 5kW

Size of Equipment L18000mm*W800mm*H1900mm
