    • J1552 Fine Pitch Spring Contact Probe - China

    price: 8.00 Dollar US$

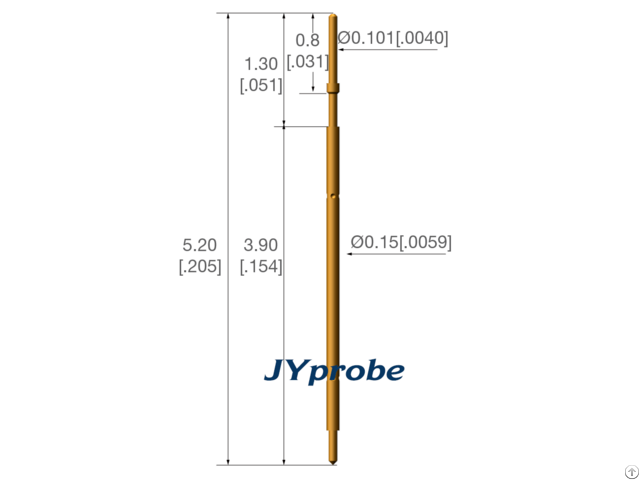

    J1552 Fine Pitch Spring Contact Probe

    Products Photos Catalog J1552 Fine Pitch Photos Catalog

    Product Description

    Pitch: 0.25mm(250um) Mechanical& Electronical Specification

    Pitch 0.25mm[ 0.0098inch]

    Working Stroke 0.55mm[ 0.0217inch]

    Full Stroke 0.4mm[ 0.016inch]

    Spring Force 8g at0.4mm[ 0.016inch]

    Resistance Max.

    200mOhm

    Current 0.5Amp

    Operated Temperature -40~125°C

    Material

    TOP Plunger Beryllium Copper/ Au Plated

    Bottom Plunger Beryllium Copper/ Au Plated

    Spring Music Wire/ Au Plated

    Tube G4/ EF Tube


    Company Contact:


    • Phone: 86-(0)21-3769 5886

    • Address: No118, Lane 168 South Laiting Road,, Shanghai , China

    • Email: Email


    Published date: February 10, 2020 - Modified date: February 10, 2020

    • Business Description: JianYang is dedicated to the success of our customers by being a world-classical provider of innovative spring contact probe (pogo pin) to the semiconductor test industry and spring contact probe to In-circuit test and Function test factory(OEM ODM).

      JianYang, first established in 2008, offers a wide spectrum of spring contact probe (pogo pin), probe pins and services designed to meet the unique challenges of each customer.

      As a leading provider of spring contact probe, we at JianYang are committed to delivering value added solutions through our product offerings and expert customer support.
