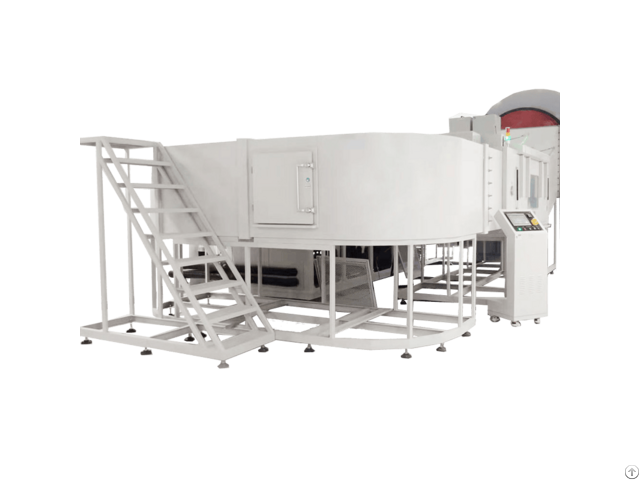

Photovoltaic Dustproof Test Chamber - China
price: contact company for price
Photovoltaic dustproof test chamber is suitable for evaluating the resilience of all mechanical, optical, electrical, electronic, electrochemical and electro-mechanical devices that may be exposed to dry sandblasted, dustblasted or dustfall conditions.
Product Parameter
Studio Size (D*W*H)mm 1400×2400×900(D*W*H)mm
Dimension(D*W*H)mm 6000×9650×3700(D*W*H)mm
temperature range 23℃～70℃
temperature deviation ≤±2℃
Humidity range ＜30%RH
Dust blowing air speed 1.5～10 m/s
Sand blowing wind speed 18.0～30.0 m/s
Blowing Dust Concentration 3.0～17.6 g/m³ (10.7 ± 7 g/m³)
sandblast concentration 0.18 + 0.2 g/m³；1.1 ± 0.3 g/m³；2.2 ± 0.5 g/m³
Test dust quartz dust
Sand Size ≤ 149 μm to pass through a 150 μm diameter mesh.
Company Contact:
- Posted By: Shanghai Linpin
- Phone: 13482073228
- Address: No. 888, Zhangong Road, Fengxian District, Shanghai 201417, P.R.China., Shanghai , in operation, China
- Email:
- Website: http://www.linpin.com.cn/
Published date: July 7, 2025
- Business Description: Linpin instrument products series include: temperature and humidity test chamber, cyclic test chamber, illumination test chamber, aging test chamber, shock test chamber, IP protection test equipment, walk in laboratory, vibration, drop test machine, non-standard products and other full range of environmental test equipment.
