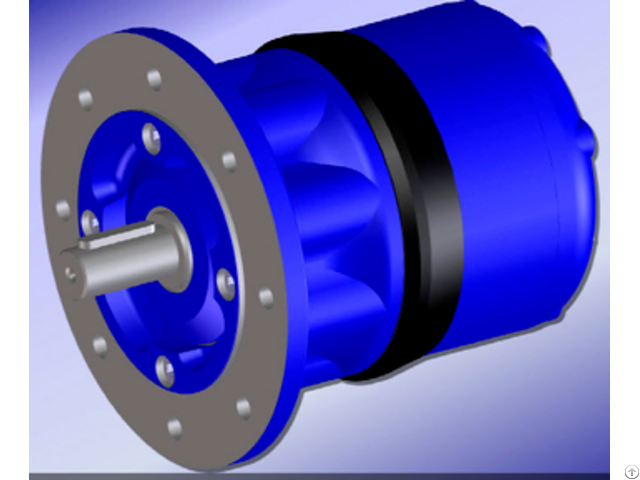

Pneumatic Radial Piston Shaft Air Motor - India

Applications Mixing equipment, conveyor drives, pump drives, food packaging, pharmaceutical packaging, hoists and winches, hose reels, fiberglass choppers, tension devices, turntables Features Variable speed, variable direction, non-electrical sparking, cool running, compact and portable, operate in all positions, mounting flexibility.

Free speed 45 rpm Max.

Power 0.35 hp 260 W Torque at max.

power 5.9 in.

lbs 8 Nm Reversible yes Weight 1.7 lb 0.78 kg Actual air consumption 19.9 cfm Min.

hose size 3/8" 10 mm Noise level 73 db dBa 1 - Robust Design, Great Performance in Harsh Environments Design allows no heat generation or sparks, Anham Corporation handle flammable, explosive gas applications.

They can be used in dust, explosive work atmosphere.

Please contact us for special specifications request 2 - Self-Cooling Construction Air motor in operation expands air, allowing air motors to work in ambient temperature -10 ° ~ 45 °.

High temperature applications are possible with Special grease, seals and lubrication.

Please contact us for high ambient temperature applications 3 - Easy Speed Control Precision and easy variable speed control from low to high speed is possible using by flow rate adjustment using throttle valve, pressure adjustment by pressure reducing valve (regulator).

4 - Overload Protection If motor is overloaded, load is balanced by reducing the speed or stopping it.

They will not burn out when stalled or overloaded.

Once overload is removed original speed is attained.

This protects overheating of the motor.
