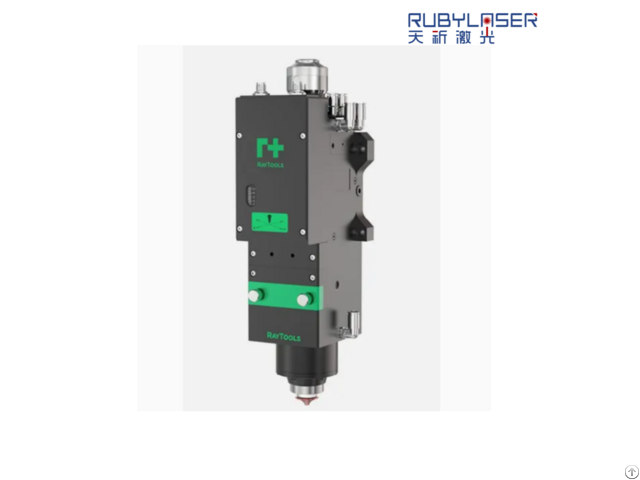

Raytools Empower Bm110 Cutting Head For 3000w 4000w 6000w Fiber Laser Cutter - China

Basic Info.

Model NO.

RAYTOOLS BM110 Fiber laser cutting head

Cooling System

Water Cooling

Technical Class

Pulse Laser

Applicable Material

Metal

Structure Type

Desktop

Laser Classification

Solid Laser

Laser Technology

Laser Control Fault Cutting

Focusing Lens

D30-F125/F155/F200 Nozzle Caliber

1.0-5.0mm

Ceramic Ring

D32

2D/3D

Yes

Focus Length Adjustment

Auto

Applied Laser Power

3000W

Focus Length Adjust Range

35mm

Applied Machine

3015 Fiber Laser Cutting Machine

Cooling Method

Water

Usage

Cutting or Drilling on Thick Metal Plate

Fiber Interface

Qbh/Qd

Protect Lens

Yes

Matched Laser Generator

Raycus/Max/Ipg/Nlight

Focus Leng

D30

Transport Package

Carton Box and Foam

Specification

3000W

Trademark

raytools

Origin

China

HS Code

8504401990

Production Capacity

1000sets/Month

RayTools cutting head is a medium- and low-power autofocus laser cutting head with a power rating.

Equipped with a QBH fiber interface, it is compatible with various mainstream laser sources.

Its optimized optical configuration and smooth, efficient airflow design significantly enhance cutting quality and efficiency.

Model

BM110

Power Rating

≤3.3kW

Fiber Interface

QBH

Cutting Gas Pressure

25Bar

Clear Aperture

28mm

Collimation Length

F75 / F100

Focusing Length

F125 / F150 / F200

Auto Focus Range

-12mm~+10mm

Protective Windows

D24.9*1.5 (Upper); D27.9*4.1 (Lower)

Nozzle Styles

Single Layer, Double Layer

Weight

~5.0kg
