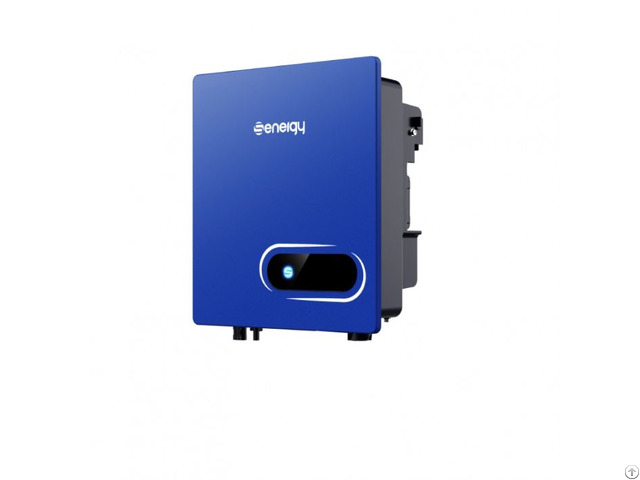

S1 G2 Shenzhen Senergy Technology Co Ltd - China

Features Maximum efficiency 97.8%

String current 15A, compatible with high Power modules

150% PV configuration, 110% output overload

IP65 waterproof and dustproof, C5 anti-corrosion

Natural cooling

Remote configuration and upgrade

Model SE 2KTL-S1/G2 SE 3KTL-S1/G2 SE 3K6TL-S1/G2

Efficiency

Max.

Efficiency 97.5% 97.8% 97.8%

European Efficiency 96.5% 96.8% 96.8%

Input(PV)

Max.

Input Voltage 500V

Max.

PV configuration(STC) 150%

Rated Input Voltage 360V

Max.

Input Current 15A

Max.

Short Circuit Current 20A

Start Input Voltage 70V

MPPT Operating Voltage Range 50V-490V

Max.

Number of PV Strings 1

No.

of MPPTs 1

Output(Grid)

Rated AC Active Power 2, 000W 3, 000W 3, 600W

Max.

AC Apparent Power 2, 200VA 3, 300VA 3, 600VA

Max.

AC Active Power (PF=1) 2, 200W 3, 300W 3, 600W

Max.

AC Output Current 10A 15A 16.0A

Rated AC Voltage 220V/230V, L+N+PE

AC Voltage Range① 160V-300V(Adjustable)

Rated Grid Frequency 50Hz/60Hz

THDI <3%(Rated Power)

DC Current Injection <0.5%ln

Power Factor > 0.99 Rated power (Adjustable 0.8 LD – 0.8 LG)

Protection

DC switch Support

Anti-islanding protection Support

AC overcurrent protection Support

AC short circuit protection Support

DC reverse connection Support

Surge Arrester DC Type III(Optional) / AC Type III

Insulation detection Support

Leakage current protection Support

General

Topology Transformerless

IP Rating IP65

Night Self Consumption <1W

Cooling Natural cooling

Operating Temperature Range -25℃-60℃

Relative Humidity Range 0-100%

Max.

Operating Altitude 4000m

Noise(typical) 30dB

Dimensions (W*H*D) 320mm*344mm*137mm

Weight 6.5kg

HMI & COM

Display Wireless & APP +LED, LCD(Optional)

Communication Optional: RS485/WiFi /GPRS/4G/LAN

Certification

Safety IEC62109-1, IEC62109-2

Grid Code IEC61727/62116, ABNT 16149/16150, IEEE 1547, AS 4777

Warranty 5 Years Supports export power control
