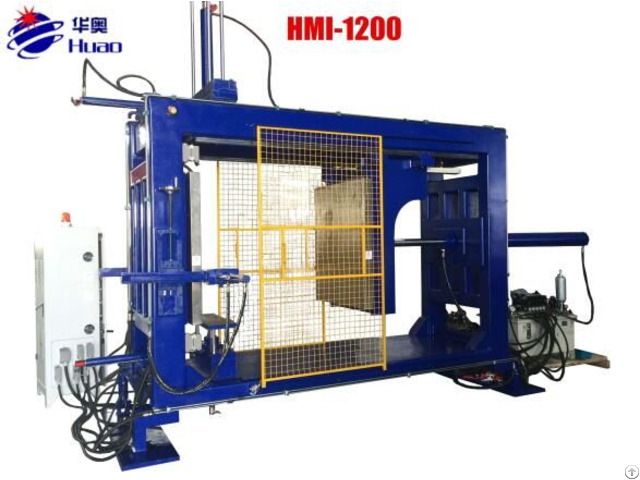

Servo Hmi Apg Clamping Machine - China
price: 45000.00 Dollar US$
1, Description of APG casting machine
The machine is full automatic, servo and PLC touch screen control.
Machine, the clamp plate size can customized, greatly improved efficiency and product quality.
Advantages:
(1)Servo motor control
(2)PLC touch screen Control
(3)Can save more than 100 product datas
(4)Fully automatic design
Auto start machine & heating clamp plate
Auto setting hydraulic pressure
Auto setting heating temperature
Auto setting valve flow
2, Main technical data of APG casting machine
Model No.
HMI-1200
clamp plate size 1000*1200mm
clamp force 24T
Min Max clamp plate stroke 240*1250mm
Upper&lower core puller stroke 760*350mm
Heating power 24kw
hydraulic power pack 7.5kw
Horizontal tilting angle 0-5
mould load weight 2T
Machine weight 5300KG
Machine dimension 3400*1600*3100mm
3, Main configuration of APG casting machine
(1)PLC: Mitsubishi
(2)switching power supply: Taiwan mingwei
(3)inverter: Taiwan delta
(4)intermediate relay: omron
Company Contact:
- Phone: +865704888766
- Address: No.6-3 ruzhu road , sidu town, jiangshan city, zhejiang province, China, jiangshan , zhejiang , China
- Email:
Published date: May 7, 2020
- Business Description: We are specialized in producing APG equipment, mold, winding machine and providing epoxy resin product design, mold design and Production process training.
Since the establishment, our company has provided comprehensive equipment and process training services to customers in more than 30 countries and regions
We can customize the suitable equipment according to your different requirements
