Thin Film Degassing Vacuum Mixing And Injection Device2020 - China

price: contact company for price

Thin Film Degassing Vacuum Mixing And Injection Device2020

Products Photos Catalog Thin Film Degassing Photos Catalog

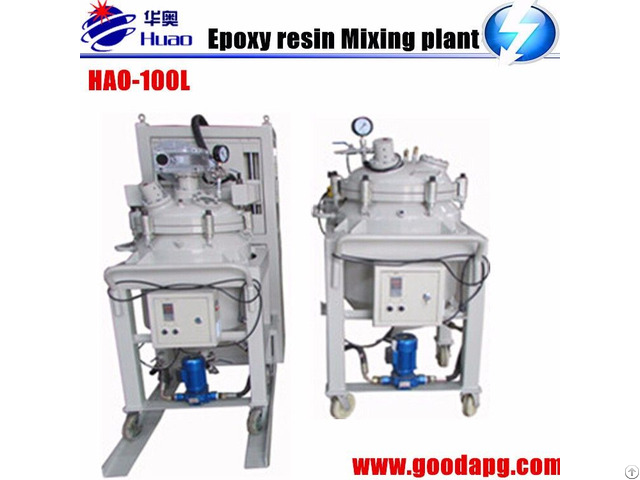

HAO-100L

Thin film-degassing vacuum mixing and injection device

1 - Electronic vacuum guage more precision

2 - Triple safety design

3 - Oil cycling heating surround pot, heated evenly

4 - Thin film de-gassing, excellent vacuumize

5 - Adopt frequency motor to control mixing speed, quick degassing, uniform mixing

6 - Compact structure, less space, flexible use

7 - The temperature control system has functions of temperature display, automatic temperature limiting, safety protection and so on

8 - Use stirring and injection vehicle directly, it is convenient to use

Machine Technical Parameters

mixing power 3kw

mixing speed 20-70r/min

capacity of pot 100L

pot size 1100mm*1000mm*1800mm

vacuum pump power 1.1KW

hydraulic power pack power 0.75KW

vacuum degree 0.5mBar

injection pressure 0.5Mpa

dimension of pot 2100mm*870mm*2100mm

weight of pot 900KG


Company Contact:


  • Phone: 13362028128

  • Address: NO.6-3 ruzhu road,fuzhu pack,, sidu town,Jiangshan,quzhou, zhejiang, china, jiangshan , China

  • Email: Email

Published date: May 9, 2020

  • Business Description: The only supplier for apg machine, molds and techinique training overseas

    technique consult service, mixing plant, raw material, molds, winding machine, sample production
