Zrsuns 40w Co2 Laser Power Supply - China

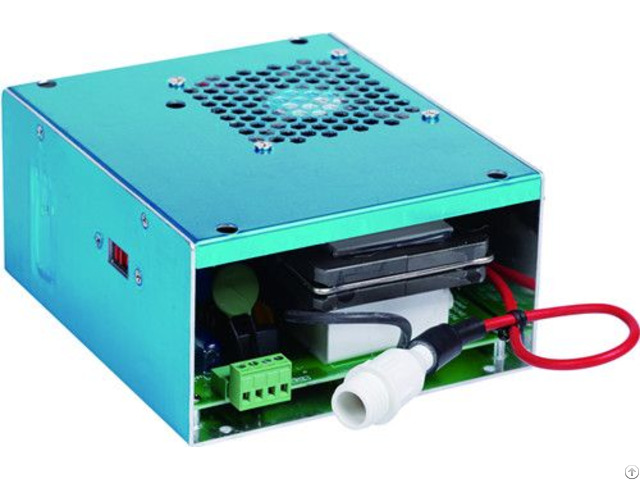

ZR-40W CO2 laser power supply

Feature

1 - Easy Control: The start and stop of laser power can be easily controlled by TTL level on this 40W laser power supply.

And it has protection switch to test the external water, ventilation, etc.

2 - The 40w laser power supply adds a new function, that is timely scene judging which part is damaged on laser tube or laser power supply.

3 - Application: Acrylic sculpture, cut; Fabric sculpture, cut; Rubber sheet sculpture, cut, etc.

4 - Easy control of laser power: Both 0-5V analog signal and PWM signal can control the laser power on this40watt laser power supply.

5 - This 40watt CO2 power supply has fast response speed and effect.

6 - This 40 watt CO2 power supply has an aluminum alloy housing and a dedicated interface for the stamp engraving machine: K+/K -/D+/D -/G/IN/5 - In addition, it also has; DC24V/5V output

7 - The CO2 laser power supply has feedback interface which can be used in closed-loop control and testing the working current of laser.

8 - Because of many protect function, this 40W laser power source dramatically lengthen the lifetime of glass type CO2 tube.

9 - The 40Watt CO2 power supply has open circuit protection: Under the condition of good protective earth, the power supply can work in open-circuit for a short time, which could avoid the damage to laser power supply.

10 - This ZR-40W CO2 laser power supply adopts K+/K-/D+/D-/G/IN/5V as control signal output interface and uses blue aluminum case.

11 - Good compatibility: This 40W CO2 laser power supply can be applicable to most brands of 30Watt, 40Watt, 50Watt CO2 laser tube made by different factories.

Specification:

Item 40W laser power supply

Input Input voltage AC110/220V ±10% AC frequency 47-440Hz Max input power 350W Max input current 3A

Output Max output voltage DC25KV Max output current DC20mA(it depends on different brand 40watt CO2 laser tube)

Efficiency More than 90%(full load) MTBF More than 10000 hours

Response speed 1ms(Time is from TTL.

Signal is given to the output current up to 90% of pre-setting current)

Withstand voltage Input-output, input-enclosure, AC1500V, 10mA 60S, Output cathode is connected with enclosure.

Environment Operation temperature(-10-40 degree celsius), related humidity s less than 90% Cooling Force air cooling

Environment related Working temperature -20℃---50℃ Storage temperature -10℃---75℃ Related humidity Max 85^ RH(non-condensing) Cooling method Force air cooling(FAC) Altitude 100000feet of work, 200000 feel of storage, no work.

Cooling method Air force cooling(Fan cooling)

Dimension LxWxH=165X144X80mm
