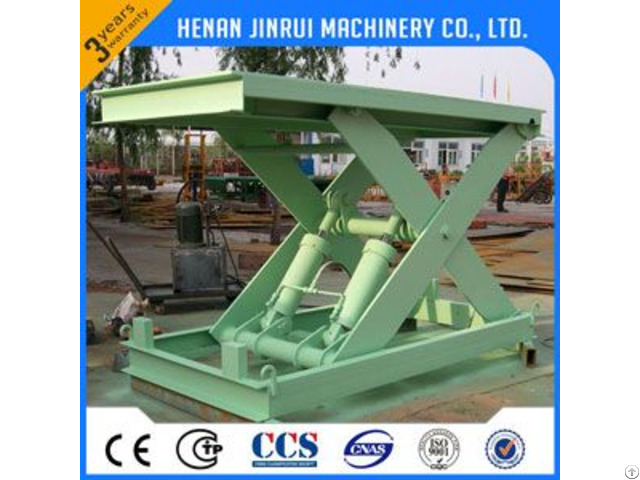

1ton Hydraulic Fixed Stationary Scissor Lift Platform - China

Fixed hydraulic lift table is a kind of multifunctional lifting handling machinery.

it sited into a lift pit or on the ground to convey the goods from one working level to another.

With scissor lift structure, carrying capacity, smooth movements, easy installation and maintenance, It is widely used in industrial and pharmaceutical production line, also can be used as delivery cargo elevator to transport the goods.

Features

Platform : anti-slip checkered steel plate

Scissor structure: Manganese steel rectangular tube

Control equipment : Delixi, Siemens or Schneider brand.

Pump station: Italy Hydrappp or Sino-italian brand.

Hydro cylinder: high precision wear-resisting hydraulic cylinder with locking device for fall protection.

Obturating ring: Brand German Seal (made in German) or Japan VLQU Seal

Safety features

Control Device: Calling box (installed on the wall nearby) and remote controller(Extra optional).

Emergency Stop: The lifting and lowering process can be stopped immediately by pressing the emergency button.

Safety Interlock: Lock the platform when it is out of control.

Emergency lowering: The platform can be lowered by opening hydraulic valve manually or rolling screw rod.

The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.

The machine equipped single control solenoid valves to prevent the platform dropping if power failure.

You can open the manual dropped valve to lower the platform to the home position.

Payment term: 30%T/T advanced payment and 70%T/T before delivery

Delivery time: Within 7-10 working days after deposit received

Package: Electric hoist and crane parts will be packed by plywood crate, main girder packed by water-proof cloth

After sales-services: 18 months warranty; installation, commissioning and training services overseas; technical advisory for any time.
