Fixed Foam Fire Fighting System - China

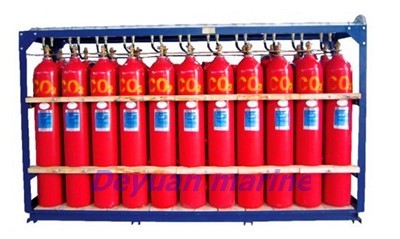

CO2 fire extinguishing system

China Deyuan Marine Fitting Co., ltd are leading supplier of carbon dioxide fire extinguishing system, local water-based fire fighting system, fixed foam fire fighting plant, water spray fire extinguishing system.

Pls contact us for more details.

Type fixed

Nominal pressure 14.7Mpa

Cylinder volume CO2 cylinder 40L, 68L

N2 cylinder 4L

CO2 filling rate ≤0.67kg/L

Environment condition temperature -10C+50C

humidity 93±3%

Electricity supply Main supply AC220V, 50HZ/440v, 60HZ

Auxiliary supply DC24V, 3A

Power standby ≤30w

Working 200w

Operation method manual

pneumatic Remote control

mechanically Local operation

Release delay Mechanical delay 20-40S

Star up air source Gas type N2

Filling pressure 5.9Mpa

External dimension

Assembly

type Cylinder

unit Length breadth Height(H)

Single

row 2 605 680 310 350 2000

3 855 970

4 1105 1260

5 1355 1550

6 1605 1840

7 1855 2130

8 2105 2420

9 2355 2710

10 2605 3000

11 2855 3290

12 3105 3580

Double

Row with

Single

assembly 4 605 680 500 600 2000

6 855 970

9 1105 1260

10 1355 1550

12 1605 1840

14 1855 2130

16 2105 2420

18 2355 2710

20 2605 3000

22 2855 3290

24 3105 3580
