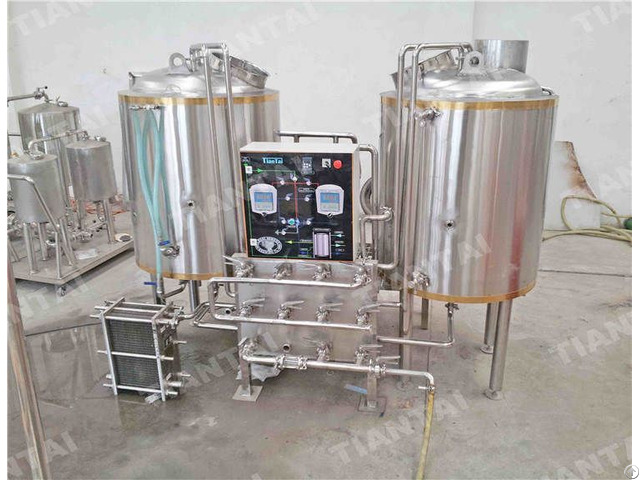

200l Boiling Kettle - China
price: check with company for price
After lautering, the beer wort is boiled with hops (and other flavourings if used) in a large tank known as a brew kettle.
The boiling process is where chemical and technical reactions take place, including sterilization of the wort to remove unwanted bacteria, releasing of hop flavours, bitterness and aroma compounds through isomerization, stopping of enzymatic processes, precipitation of proteins, and concentration of the wort.
Function: Wort boiling
Tank Capacity: 200L (+30% Headspace minimum)
Dimension: Φ760mmx2100mm
Interior Shell: SUS304 full welded; TH=3mm
Exterior Shell: SUS304 full welded; TH=2mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner
Insulation: Rock wool; TH=80mm
Heating: Electric; Power: 18kw
Steam Jacket: No
Dished top and sloped bottom
Stainless steel top mounted manway
360° coverage CIP spraying ball
Sanitary leveling sight glass
Thermowell for high accuracy temperature sensor
3pcs completely SUS304 heavy duty legs with leveling pad
Company Contact:
- Posted By: Shandong Tiantai Beer Equipment Co., Ltd.
- Phone: 531 88161066
- Address: 济南市高新区机场 2668号, 济南 , China
- Email:
Published date: August 14, 2023
- Business Description: Shandong Tiantai Beer Equipment Co., Ltd. is a China based manufacturer and supplier of brewery equipment with more than 20 years experiences.
As an emerging and prospective competitor, we are morn than a supplier to offer the brewery tanks connected by pipings and fittings, but a complete-solution provider to operate the turnkey brewing systems with custom designs for the craft brewers all over the world.
We focus on offering our customers with high quality products and superior services which allow the brewers to minimize the cost but maximize the profits on operating our brewing systems and to produce better beers in wide range of styles.
