Ct C Hot Air Tray Plate Dryer - China

It uses the steam heater or electrical heating organ to create heat and change heat through convective wind to heat up the material.

1 - DESCRIPTION

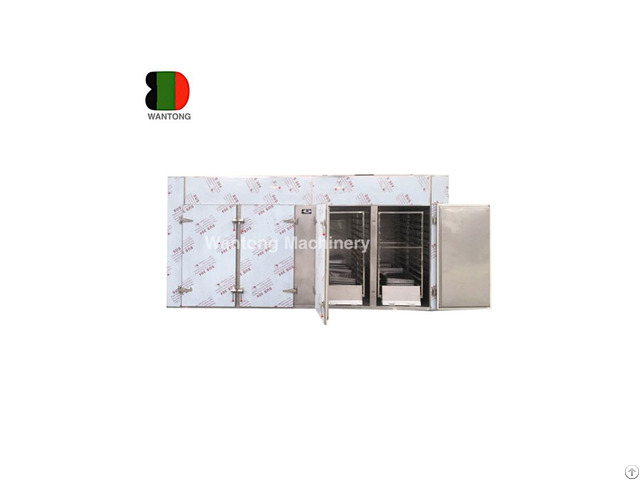

CT-C Hot Air Circulation Oven is initiated by our company and reaches the international level after several updates.

This machine overcomes the disadvantages of long drying time, great heat loss.

It uses the steam heater or electrical heating organ to create heat and change heat through convective wind to heat up the material.

Meanwhile it renews fresh air and expels wet air.

The heat wind can cycle in the oven, so it saves the source.

The oven can be used to heating and expel wet air in pharmaceutical industry, chemical industry, foodstuff industry, light industry, heavy industry, etc.

1 - MAIN APPLICATION

For pharmaceutical, chemical, food, agricultural and sideline products, water products, light industry, heavy industry and other industries of the heating and curing, drying and dehydration.

Such as raw materials, raw materials, Chinese herbal medicine, extract, powder, granules, powder, pills, water bottles, pigment, dyestuff, dehydration vegetable, dried fruit and melons, sausage, plastic resin, electric elements, paint etc

CT hot air tray dryer can used as industrial fruit and food dehydrator dehydrating machine.

for drying fruits and vegetables, mushroom, chili, spice, turmeric, herbal material etc

2 - MAIN FEATURES

(1)Heating source: conduction oil, steam, hot water, or electric.

(2)Certification: ISO CE 9001 and SGS

(3)Product material: stainless steel 304(or other as client’s request)

(4)Temperature range: Steam heat: room temperature~150℃

Electric/FRI heat: room temperature~350℃

(5)380V/220V

(6)Control cabinet using button control (can also be produced by the user requirements of touch control), the operation is more convenient, to extend the service life

(7)Most of the hot air circulation in the box, high thermal efficiency, energy conservation.

(8)The use of forced ventilation, the box is equipped with adjustable air distribution board, and the material is uniform and uniform.

(9)horizontal ribbon mixer noise is small, the operation is balanced, the temperature control, the installation and maintenance is convenient.

(10)Wide range of application, can be dry all kinds of materials, is a universal drying equipment.

(11)Air inlet can be added with the initial effect, the efficiency of the filter, for the user to choose

(12)Baking tray size: 460*640*45mm
