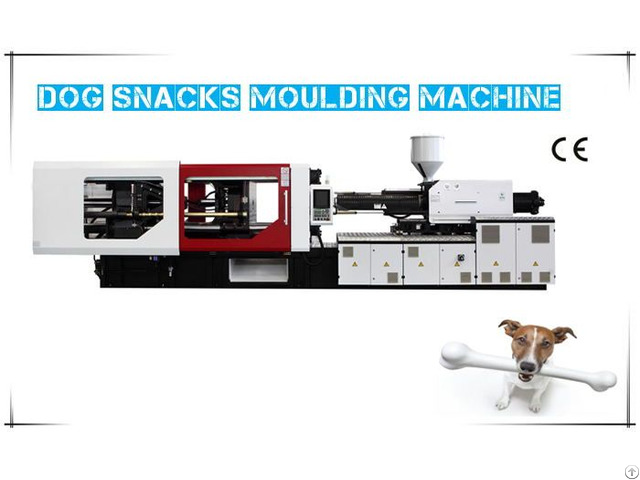

  • Dog Snacks Moulding Machine - China

    price: check with company for price

    Pet Food Machine
    Main Equipment:
    Molded Pet Snacks Equipment is special machinery for producing pet snacks.
    Technical Features:
    With such machine, various shapes can be made, such as hedgehog, crocodile, dog, bone, pork ears, barrel, etc. The shapes are very lovely and it is a ideal encouragement to dogs and cats while they learn a new action or do well in some exercises and games. Also, we can provide different recipes to meet various market demands.
    System Advantage:
    It has the following features:
    a)Molded Pet Snacks Equipment comes with user-friendly microprocessor controller with these following features;
    b)Dust, oil proof and colorful touch switch control panel.
    c)El display of pressure, speed, time and distance for each motion.
    d)Shut-down device with 100 presets mold data memory.
    e)Equipped with 4 stages injection, 3 stages holding pressure and 3 stages back pressure.
    f)PID barrel temperature control: temperature abnormal & electrical wire disconnection alarm.
    g)SSR-solid state temperature controller.
    h)Screw cold start protection.
    i)Abnormal shot detection.
    j)Output quantity and packaging quantity preset.
    k)Clamping, injection and ejection (option), and carriage action (option) by linear potentiometer.
    l)Screw rotating speed read-out.
    m)Security code function to avoid missing data or careless changing.
    n)Super low pressure clamping ensures security of user, and maintains lifespan of machine efficiently.
    Application Scope:
    Technical Parameters:
    Item Name of item Unit QL-280
    Injection unit Screw Diameter mm 60 Screw L/D Ratio Ratio 18.8 Shot Volume mm 707 Shot Weight g 636 oz 22.4 Injection Pressure Mpa 142 Injection Rate g/s 239 Plasticizing Capacity g/s 49 Screw Speed rpm 180
    Clamping unit Mould Clamping Force Kn 2680 Opening Stroke mm 540 Space Between Tie-bars mm×mm 570×570 Max.Mould Thickness mm 600 Min.Mould Thickness mm 220 Ejector Stroke mm 130 Ejector Force Kn 62 Ejector Number N 9
    Others Pump Pressure mpa 16 Pump Motor Power Kw 22 Heating Capacity Kw 14.7 Machine Dimensions(L×W×H) m×m×m 6.1×1.5×2.28 Oil Tank Capacity Liter 510 Machine Weight Ton 9.0


    Company Contact:


    • Phone: 86-531-86926918

    • Address: No. 12111, Jing Shi Road, jinan , shandong , China

    • Email: Email


    Published date: October 16, 2018 -

    • Business Description: Jinan Qunlong Machinery Co., Ltd. (Hereafter called “Dragons Machine”) is an international high-

      tech enterprise, a council member of Chinese North China Pet Industry Association (CNCPIA), awarded

      by The National Quality Service Credit AAA Enterprise, which is majored in manufacturers of food

      extruder machine and pet food machine.
      Incorporated 2004, Jinan Qunlong Machinery Co., Ltd. has one wholly owned manufacturing factory in

      Jinan City, and registers “DRAGONS MACHINE” as brand. We passed the ISO9001 quality

      management system certification in August 2016, and all the machines have EU CE Certification.
      Dragons Machine owns a number of core patented technologies, and specialize in providing the

      following machines:Food Extruder Machine, Pet Food Machine, Cereal Bar Machine, Customized Service
      With more than ten years’ development, Dragons Machine has set up mature sales networks, and

      sold machines to more than 50 countries around the world, includes USA, Canada, Germany, Italy,

      Spain, France, Russia, Turkey, Egypt, Mexico, Peru, Columbia, Malaysia, Korea, Nigeria, Saudi Arab, etc.
      Dragons Machine is aim to lead the technological revolution for food machine, and become the most

      respected intelligent machinery and service provider. Welcome your visit us for Dragons Machine.
