Toffon Freeze Dryer Tf Fzg 10 - China

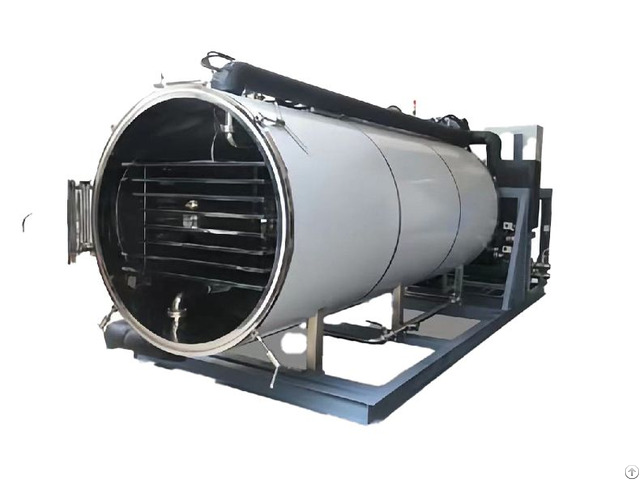

**TOFFON Freeze Dryer TF-FZG-10** **Product Overview: ** The FZG series freeze dryer is manufactured using standardized processes to meet the production needs of food, traditional Chinese herbs, and industrial materials.

It employs high-quality materials, industry-approved imported components, and advanced manufacturing techniques, ensuring full compliance with GMP standards.

**Key Features: ** 1 - The freeze-drying chamber and partitions strictly follow GMP standards.

The 304 stainless steel cylinder features a mirror-polished interior, exceeding the manufacturing standards of typical Chinese food freeze dryer manufacturers.

2 - Integrated freeze-drying chamber and cold trap design with a front chamber and rear trap layout.

Includes an illuminated observation window for easy monitoring and a hygienic, easy-to-clean structure with no dead corners.

3 - Customizable 304 stainless steel partitions with surface-drawn square steel profiles for smooth, easy-to-clean surfaces.

4 - The cold trap’s water-catching coil is made of clean stainless steel, available in integral or separate structures per customer requirements.

5 - High-performance imported refrigeration components ensure strong cooling capacity, rapid cooling, and stable operation.

6 - Flexible vacuum system configurations with high-quality AiFa Technology vacuum pumps to meet diverse customer needs.

7 - Omron PLC control system enables easy data storage and operation, supporting automatic/manual mode switching.

Multiple process settings can be adjusted mid-drying for customized steps.

8 - Efficient immersion or steam defrosting ensures fast, thorough defrosting and cleaning.

9 - Built-in pre-freezing function eliminates the need for external storage, reducing material liquefaction and contamination risks.

10 - Adjustable process parameters, including curve-controlled temperature and vacuum settings, to accommodate different materials.

11 - Partition’s intermediate oil heating system replaces steam, ensuring eco-friendliness and safety compliance.
