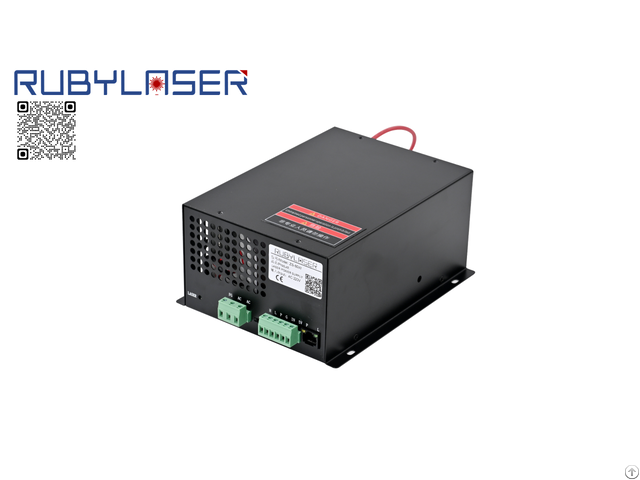

Eighty Watt Co2 Laser Power Supply High Voltage 80w Psu - China

Specification

Input

Input voltage

AC220V±10%

(AC110V specified while order)

AC frequency

47~440HZ

Maximum input power

750W

Maximum input current

3.4A

Output

Maximum output voltage

32KV

Maximum output current

33mA

(depending on the laser tubes of different manufacturers)

Efficiency

More than 90% (Full load)

Response speed

Less than 1ms

Control interface

TTL multilevel switching control, effective level can be high and low selection (see control wining diagram)

Insulation

input-output

AC 1500V 1 minutes not more than 10mA

input-shell

AC 1500V 1 minutes not more than10mA

Output-shell

Connection

Open Circuit Protection

Can be short circuit (requires a good grounding shell, while avoiding the positive electrode and the shell between the arc)

Environmental Requested

Working temperature

-10ºC~50ºC

Relative Humidity

Maximum 85%RH (non-condensing)

Dimensions (LxWxH)

198mmx142mmx90mm

Product Details

Factory Sell 80 Watt CO2 Laser Power Supply/High Voltage CO2 Laser PSU/CO2 Tube Driving Power Supply

•Rigorous Quality Testing:

Each 80W power supply undergoes a 10-hour full-load aging test at 60°C and 500 on/off cycles before shipment.

•Durable Construction:

Aluminum casing with galvanized steel base ensures excellent heat dissipation and corrosion resistance.

•Cooling & Easy Diagnostics:

•Equipped with single cooling fans(The use of silicon carbide reduces power supply's heat dissipation) and a RED TEST button for quick .

•Wide Compatibility:

Designed to drive most 1200–1450mm CO2 laser tubes with a zero-current, half-bridge soft-switch circuit for high efficiency and rapid response.

•Flexible Control Options:

Supports high/low level or TTL signal control with built-in water flow and ventilation protection switches.

•Precise Power Regulation:

Output power is adjustable via 0–5V analog or PWM signal for stable and accurate performance.

•Advanced Silicon Carbide Technology:

Replaces traditional transistors for higher efficiency, lower heat generation, and extended lifespan—ideal for long-duration operation.

•Optimized Circuit Design:

Simplified circuitry improves reliability, ensures consistent output, and enhances engraving and cutting quality.

•Automated Manufacturing:

SMT production and HD camera inspection minimize human error and ensure product consistency.

•Enhanced Safety:

High-voltage cable wrapped in silicone tubing prevents electric sparks and supports stable operation in humid environments.

•Optional Voltage Stabilizer:

Compatible with 90–270V stabilizer for added protection and performance stability.

•WX means it supports LCD display screen

•Optional LCD Display:

External display shows current, status, and fault codes, with rotary control for current adjustment.

Single-channel standard; 4/8-channel optional.

Optional LCD Display

An optional external LCD display is available to provide real-time visibility of operating current, system status, and fault diagnostics.

The display is equipped with a rotary control knob that allows users to conveniently and precisely adjust the output current.

The standard configuration supports a single control channel, while 4-channel and 8-channel versions are available for applications that require multi-channel monitoring or centralized control.
