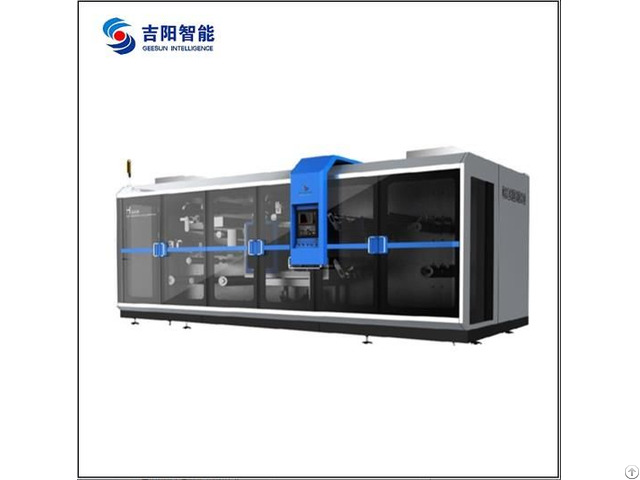

Li Ion Battery Electrode Notching Machine Laser Tabs Cutting Maching - China

High Speed Li-ion Battery Electrode Laser Notching Machine Laser tabs cutting maching Features

1 - Highest operation efficiency in the industry, Mass production: over 80m/min, Technical reserve: over 200m/min.

2 - Highest cutting accuracy in the industry, Tab distance accuracy: less than 0.1 mm.

3 - Optimal de-dusting effect, Standard cleanliness: class 10, 000 - Technical Parameter

Cutting Speed: 80m/min - 200m/min

Cutting Accuracy: 0.2mm, 0.1mm(tabs distance)

Slitting Accuracy: 0.3mm.

Correction Accuracy: 0.1mm

Heat Affected Zone: less than 100 um(cathode), less than 150 um(anode)

Tension control: less than 3N or less than 5%

Burr: less than 15um horizontal, less than 7um vertical

Yield: over 99.5%

DT: less than 2% Geesun has Developed:

The world's first laser notching (tabs forming) machine in 2008, The world's first laser cleaning mahine in 2015, The world's highest speed 200m/min laser notching machine in 2022 Core Advantages:

1 - High Precision Control System, 2 - Tension Control System, 3 - Thin Cu & Al Foil Cutting, 4 - Efficient Dust Removal System, 5 - Segmented Laser Cutting, 6 - S-shaped Laser Cutting Process, 7 - Cathode Laser Cutting Plan, 8 - Dual Laser Slitting Solution Geesun has become the strategic cooperative supplier of CATL, so far, 800+ sets of laser notching machine, cell winding machine, electrode lamination stacking machine have been delivered to CATL since 2020

Company Contact:

• Posted By: Shenzhen Geesun Intelligence Technology Co., LTD.

• Phone: 86075527885958

• Address: Building D,EF Dejin Industrial Park, No. 40 Fuyuan 1st Road, shenzhen , Guangdong , China

• Email:

• Website: https://www.geesun.com

• Business Description: Shenzhen Geesun Intelligence was established in 2006, currently with 3000+ employees and 156,000+ sqm manufacturing, R&D, and administration facilities.

  The new Geesun intelligent manufacturing base is under construction covering a space of 213.333 sqm, equals to the size of nearly 30 soccer fields.



  Geesun Intelligence focus on the R&D, manufacturing, sales and services of the Lithium-ion battery cells assembly and formation.

  The main product portfolio are:

  1> Laser notching/ tabs cutting machine,

  2> Winding machine for prismatic and cylidrical cells.

  3> Lamination stacking machine,

  4> Formation and grading productoin line and machine

  After 16+ years of development and laser-like focus in the field of lithium-ion battery manufacturing equipment, Geesun Intelligence has acquired 800+ patents, including 38 international patent and 54 software copyrights.

  Also, as one of the earliest company to ever enter the li-ion battery manufacturing equipmnt industry, Geesun Intelligence has become a leader in the industry.

  We have led and participated in the formulation of 64 standards, including 22 national standards, 6 industry standards and 2 international standards.

  As a capable and responsible equipment manufacturer, we are the trusted and proud machinery supplier to 6 of the Top 10 lithium-ion battery/power battery manufacturer in the world, including CATL, BYD,Gotion, CALB,Sunwoda, Svolt and so on.
