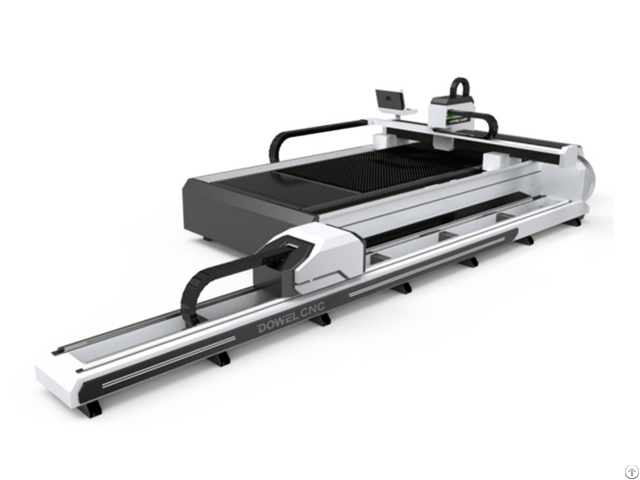

Sheet Metal And Tube Laser Cutting Machine Manufacturers - China

Main Features:

1).

Durable machine structure welded by steel plates and well processed by machining centers, stable structure to guarantee high cutting accuracy and excellent cutting performance;

2).

Gantry double-drive structure, with imported rack & pinion/guide rails, improving the production efficiency;

3).

This sheet metal laser cutting machine has Open worktable, simple operation and small space occupation.

4).

Professional CNC system based on Windows system, easy operation and advanced function;

5).

Different options of fiber laser sources ranging from 500W to 6kW;

6).

Can be used for different profiles, including steel plates, round pipe, square tube, oblate tube, angle steel, etc;

7).

Self-centering jig system ensures stable process of conveying pipes, so that it can ensure high accuracy and high quality of products Technical Tarameters

Item Sheet Metal and Tube Laser Cutting Machine Manufacturers

Model 3015 4015 4020

Working Area 1500*3000mm 1500*4000mm 2000*4000mm

Profile Type Steel plate, round pipe, square tube, oblate tube, etc.

Pipe length 3000mm or 6000mm

Diameter Range Φ20mm -200mm;

Laser Type Fiber laser generator

Laser Power 500w-3000w

Graphic Format Supported CAD, DXF, etc

Positioning Accuracy ±0.01mm

Re-positioning Accuracy ±0.01mm

Maximum Speed 60-80m/min

Continuous Working Time 24 Hrs

Power Supply 3-phase, 380V, 50Hz/60Hz

Working Environment Temp: 0-40℃, humidity: ≤80%, No condensation
