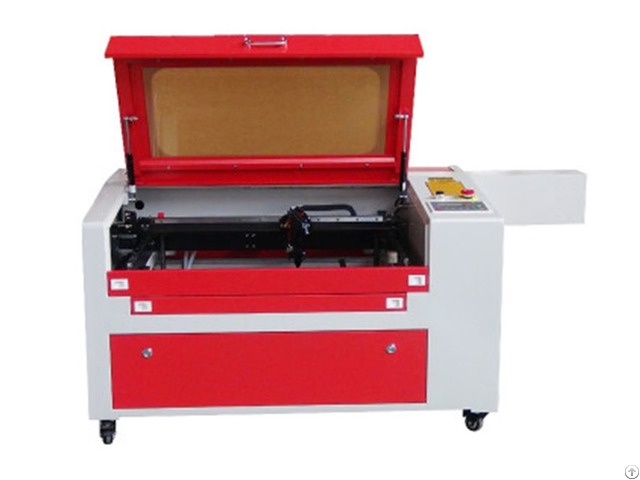

Small Laser Engraver And Cutter Machine - China

The 460 laser engraving machine uses non-contact machining, which does not cause mechanical extrusion or mechanical stress on the material.

There is no “knife mark”, which will not damage the surface of the machined surface and will not deform the material.

Regular professional laser system, stable and reliable, USB interface, can work offline.

Computer control, simple operation, fast speed, high efficiency, low production cost, high material utilization rate, excellent machine performance, cutting, cutting and engraving.

Support power-off continuation, power on again can continue to stop position work.

Applicable materials:

1 Widely engraved, can be engraved and cut for various non-metallic materials, such as jade, crystal, acrylic, wood, plastic, etc

Applicable industries:

1 It is mainly used for engraving and cutting of musical instruments, advertisements, leather, glass products, bamboo slips, writing brushes, and packaging boxes

2 It is suitable for processing small-scale crafts.

It is engraved with various graphics and characters on two-color boards, wood boards, bamboo sheets, plexiglass boards and cloths

Parameters of laser engraving machine EK460

1 Machine model EK460 laser engraving machine

2 Laser power 50W/60W/80W

3 Laser Type CO2 closed glass tube taser

4 Power supply voltage AC220±10% 50HZ/AC110±10% 60HZ

5 Largest size 600mm * 400mm

6 Working speed 0-6000mm/min

7 Platform Honeycomb / Aluminum Knife (up and down optional)

8 Positioning accuracy <0.01mm

9 Number of hanging cables 60 lines/line

10 Minimum forming characters Letters: 1 * 1mm

11 Working temperature 0°C-45°C

12 Resolution ≤ 4500dpi

13 Control configuration DSP

14 Data transmission interface USB

15 Driver Leisai driver

16 Motherboard system environment Windows XP/ Windows 7

17 Cooling method Water cooling and protection system

18 Support for graphic formats All CORELDRAW recognizable file formats

19 Engraving thickness 0-10mm (cutting depth is for reference only, mainly depends on the material and customer's requirements for cutting quality)

20 Color separation cutting Up to 256 layers of color separation

21 Water cut protection Yes

22 Slope carving The slope can be arbitrary

23 Machine weight 165KG/120KG

24 Packaging, Glued wooden box packaging

25 Package size / weight 1600 * 1140 * 1150 (mm) / 240KG

26 Optional accessories Advanced cooling water tank, imported focusing mirror, cylindrical / profiled roller.
