Air Water Cooling 10 6um Micron 25 30 38w Co2 Rf Laser Generator For Ceramic Medical Scientific - China

Model

RLT-30iL

RLT-30i

RLT-30h

RLT-30A RLT-35A

RLT-35m

Wavelength

9.3µm

10.2µm

10.6µm

Laser power

25W

30W

35W

38W

Power stability

≤±5%

Beam quality M²

<1.2

Beam Diameter(1/e²)

2.0±0.2mm

Beam divergence angle(full angle)

<7.5mrad

Polarization

Horizontal linear polarization, >100: 1

Modulation frequency

0-25kHz

Duty cycle range

0-100%

Electrical input

DC48V/12A

Cooling method

Water-cooling

Air-cooling

Size

397mm×92.5mm×93mm


357mm×92.5mm×145mm

Weight

6.2kg

Working shell temperature

<60℃(140°F)

Ambient Temperature

<15~40℃(59~104°F )

Humidity

Non-condensing

Ambient temperature

-10~60℃(14~140°F)

1) The laser power was measured at a laser temperature of 25 ℃, and for every 1 ℃ increase above 25 ℃, the output power decreased by about 1%; 2) Power stability calculation formula: Stability=± (Pmax Pmin)/(2 × Pmax) Stability testing conditions: Under normal operating conditions, preheat the machine for 10 minutes and maintain a constant control duty cycle.

Product Details

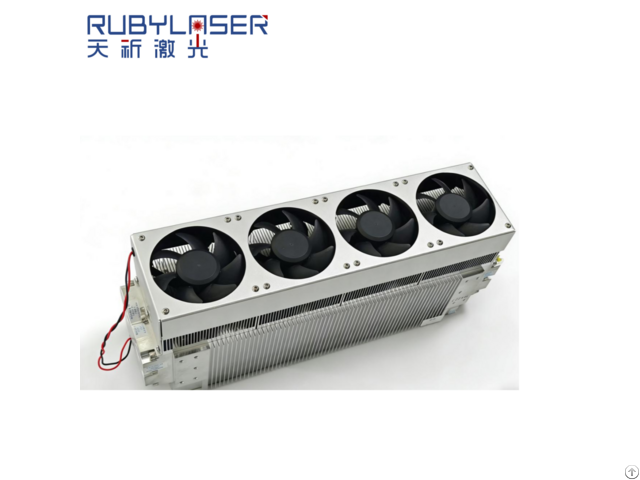

Air/Water Cooling 10.6um Micron 25/30/38W CO2 RF Laser Generator for Ceramic Medical Scientific

1 - Brief introduction:

The RLT-30 series CO2 RF laser is a gas laser based on RF excitation technology.

The working medium is a mixture of CO2, N2, and He gas, which is excited by an RF electric field to produce stimulated radiation and output laser.

Its core advantages lie in high beam quality, strong stability, and long-life design, suitable for precision machining, scientific research experiments, and medical fields.

High beam quality and stability; Compact modular design; Wide material adaptability.

2 - Application industry:

Ceramic sheet cutting; Bamboo and wood handicrafts; Medical and beauty; Research and Testing 3 - Technical parameters: RLT-30 series - air-cooled/water-cooled
