240w Garage Suspended Led High Bay Light - China

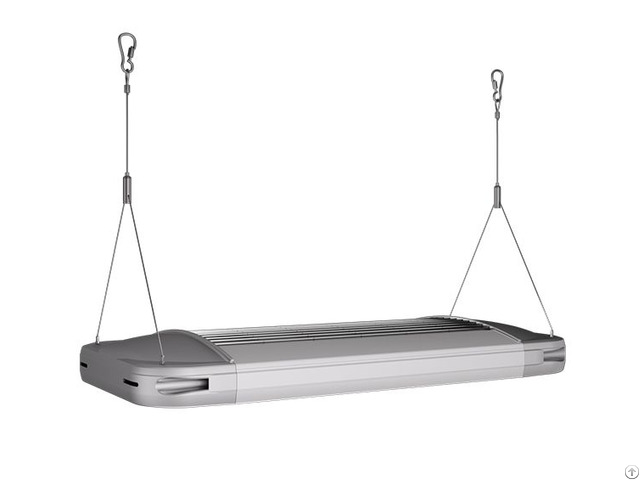

240W Garage Suspended LED High Bay Light

LED High Bay Light Supplier

Series H4 LED High Bay Light

Model：

ZGSM-GCD240H4

Application：

Warehouse | Workshop | Garage | Billboard | Area | Building

1 - Wide power range: 40W~360W.

2 - Special circuit design, single LED’s damage won't affect others' normal work.

3 - Modular design for easy installation, replacement and maintenance.

4 - High Lumen output up to 165lm/ w with high quality LED chips.

5 - Various applications with different mounting Accessories.

6 - Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7 - Designed to last at least 100, 000 hours at L70.

8 - Multiple lighting distributions are available.

SPECIFICATIONS

Model ZGSM-GCD240H4

LED Brand Lumileds LUXEON 3030/5050

Driver Brand Meanwell HLG series

Norminal Wattage 240W

LED Module Quantity 6 modules

Input Voltage 100-240/277/347/480VAC


Power Efficiency >90%

Power Factor >0.95

Lamp Rated Luminous Efficiency 140-165 lm/w

Lamp Rated Lumen output 33600-39600 lm (Lumen tolerance +/- 5%)

Color Rendering Index 70 (80 is optional)

Color Temperature 3000K, 4000K, 5000K or 5700K

Photometric Type 60, 90, 110 degrees

Optimal Operating Temperature 25℃

Storage Temperatures -40°C~50°C

Working Environment Between-40°C~+50°C, 10%~90%RH

Total Harmonic Distortion < 10%

Lumen Maintenance > 100, 000 hours -L70, @25 ºC (77 ºF)

Body Die-cast aluminum Housing

Cover PC lens

Rating IP66 IK10

Protection Class I ( Class II optional)

Certification CE, ROHS, LM80

Dimming Options 1-10V or DALI or PWM or Timer

Control Options Motion sensor or Smart control

Color Options Silver

Warranty 7 years
