Multi Purpose Led Street Light 70w Tool Less - China

Multi-purpose LED street Light 70W TOOL-LESS LED STREETLIGHTS

Parking lot LED Light, LED Path Light

Series L LED Street Light

Model：

ZGSM-LD70LMX

Application：

Street | Road | Highway | Parking lot | Bridge | Path

1 - Wide power range: 27W~120W

2 - Special circuit design, single LED’s damage won't affect others' normal work

3 - Tool-less open for easy installation, replacement and maintenance.

4 - Power-off protection makes the power automatically off when fixture is opened

5 - Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6 - Breather ensures air balance inside and outside of the lamp

7 - High Lumen output up to 150lm/w with high quality LED chips

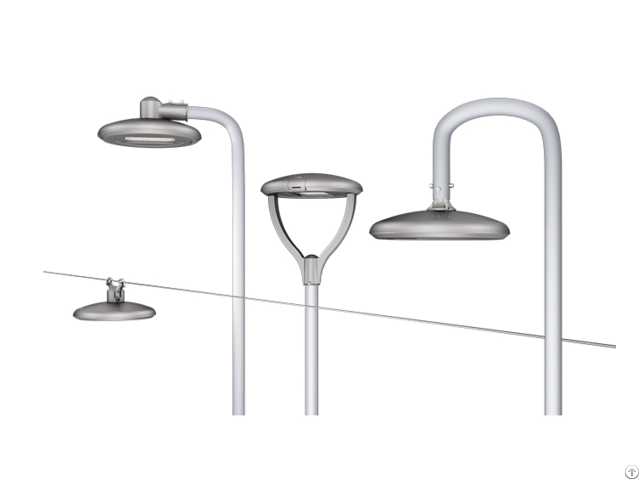

8 - Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.

9 - Multiple lighting control options are available, e.g. DALI, 1-10V, photocell

10 - Designed to last at least 100, 000 hours at L70

11 - Multiple lighting distributions are available

12 - ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

13 - 7 years limited warranty available.

SPECIFICATIONS

Specifications

Model ZGSM-LD70LMX( X= A, B, C, D)

LED Brand LUMILEDS® LUXEON 3030 or 5050

Driver Brand Meanwell HLG series/ Inventronics

Norminal Wattage 70W

LED Chip Quantity 3030: 144pcs 5050: 72pcs

Input Voltage 100-240/277VAC

Power Efficiency >90%

Power Factor >0.95

Lamp Rated Luminous Efficiency 130-150 lm /w

Lamp Rated Lumen output 9100-10500 lm (Lumen tolerance +/- 5%)

Color Rendering Index 70(80 optional)

Color Temperature 3000K or 4000K or 5000K or 5700K

Photometric Type Type I Medium;Type II Medium;Type III Medium; TypeV, Short

Optimal Operating Temperature 25℃

Storage Temperatures -40°C~50°C

Working Environment Between-40°C~+50°C, 10%~90%RH

Total Harmonic Distortion < 10%

Lumen Maintenance > 100, 000 hours -L70, @25 ºC (77 ºF)

Wind Index Force 12

Body and Shell Materials Die-cast aluminum; Tempered Glass

Pole Fitter Diameter 60mm

Rating IP66 IK08

Protection Class I ( Class II optional)

SPD 10KV (20KV optional)

Certification CE, ENEC, CB ROHS, LM80, LM79, IP66 IK08, ISTMT

Dimming Options 1-10V or DALI or PWM or Timer

Control Options Photocell or Motion sensor or Smart control

Color Options Deep grey

Warranty 7 years PACKING DETAILS

Packing Details

Fixture Dimension A type: 480X480 X521mm ; D type: 480X480 X240mm

Fixture Weight 7.5 kg

Packing Dimension 495 X 495 X170 mm

Packing Weight 8.8 kg Founded in 2005, Hangzhou ZGSM Technology Co., Ltd is located in Linglong Industrial Park, the west of Hangzhou.

ZGSM is a hi-tech and private Enterprise devoted to R&D, producing and selling of high quality LED indoor/outdoor lights, LED traffic lights, solar powered LED lighting system and so on.

As one of the patent model enterprises and the first batch of Energy-saving Service Company in Zhejiang Province, we have registered more than sixty products; we are also the members of Illuminating Engineering Society and Semiconductor Industry Association in China.
