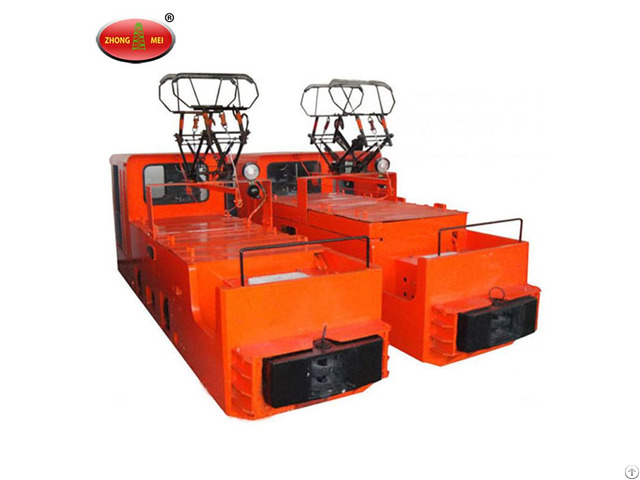

Cjy7 6gp 7t Electric Trolley Underground Mining Locomotive - China

china coal0001

7 - CJY7/6GP 7T Electric Trolley Underground Mining Locomotive

8 - Keywords: railway locomotive, locomotive, electric trolley locomotive, underground trolley mining locomotive, trolley locomotive

Introduction of CJY7/6GP 7T Electric Trolley Underground Mining Locomotive

CJY7/6GP 7T Electric Trolley Underground Mining Locomotive using DC electrical line, DC transformed to three phase AC by computer traction transformer, the voltage and frequency can be adjusted, which can drive two AC asynchronous motor, by reduction gear driving axle to tract locomotive.

The core parts of traction transformer using 32 digital DSP chip, fast speed with quick response.

Have good sticking and big traction.

Reliable AC electrical motor, with wide range of speed regulation.

Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.

The CJY7/6GP 7T Electric Trolley Underground Mining Locomotives are suitable for transportation traction on the narrow rail for the field of coal, metallurgical industry, mining, forest, railway, road tunnel construction and etc.

Locomotive can be used elevation within 2000m, metal mine or non-hazardous area.

Advantages of CJY7/6GP 7T Electric Trolley Underground Mining Locomotive

1 - The vector control transformer, AC frequency change electric motor and new locomotive cabinet designed and developed by ourself.

2 - The products has good sticking, good overload ability, good climbing, safety braking, big traction and easy to operate

3 - Human oriented design, the operation table of driver cab has speed/odometer display and locomotive running signal lamp.

4 - Energy-saving, 25% energy saved compared to DC driving.

5 - The products can adapt mining working environment, accepted temperature within -40°C~+50°C, accepted floated voltage range within -40%~+30%, with dust-proof and shake-proof function.

Parameter of CJY7/6GP 7T Electric Trolley Underground Mining Locomotive

Specification/ Model CJY7/6GP CJY7/7GP CJY7/9GP

weight (ton) 7 7 7

Track gauge (mm) 600 762 900

Wheelbase (mm) 1100 1100 1100

Wheel diameter (mm) 680 680 680

Height btw connector & track surface (mm) 320/430 320/430 320/430

Min curve radius (m) 7 7 7

Pantograph (mm) 1800~2200 1800~2200 1800~2200

Braking mode Mechanic + electric Mechanic + electric Mechanic + electric

Max traction kN 19.2 19.2 19.2

Max speed (km/h) 20 20 20

Rated speed (km/h) 10 10 10

Power of motor kW 2 x 22 2 x 22 2 x 22

Voltage DC250/550 DC250/550 DC250/550

Driving method spur gear spur gear spur gear

Speed adjust AC frequency change AC frequency change AC frequency change

Dimension 4460 x 1060 x 1590 4400 x 1340 x 1590 4400 x 1340 x 1590
