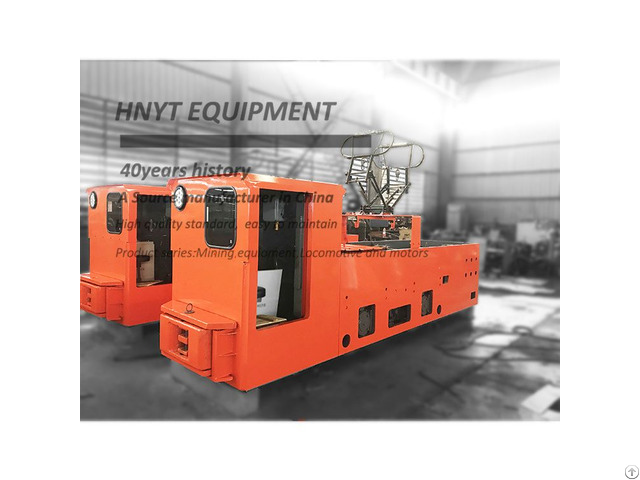

Cjy7 Ton Underground Trolley Wire Locomotive - China

CJY7 Ton Underground Trolley Wire Locomotive Adhesive / total weight (t) : 7 ton Track gauge (mm) : 600, 762 or 900 Traction (KN) : 13.05kN/ 15.09kN Max.

Traction (KN) : 17.2kN Speed(km/h) : 11km/h Voltage : 250V or 550V Power (KW) : 21kw *2 or 24 kw*2 Dimensions Length(mm) : 4550mm Width(mm) : 1050, 1212 or 1350mm Height(mm) : 1550mm Wheelbase (mm) : 1600 mm Min Curve radius (m) : 7 m Wheel diameter (mm) : Φ680mm Controller : Resistance or IGBT or AC controller Braking method : Mechanical or air Brake Proper Maintenance of Underground Xiangtan Electric Locomotive Tracks Ensuring the cleanliness and integrity of tracks is crucial for the safe and efficient operation of underground Xiangtan electric locomotives.

These locomotives rely on well-maintained tracks to navigate through mining environments reliably.

Let's delve into the standards for cleaning underground Xiangtan electric locomotive tracks.

Standard for Track Cleaning:

The primary objective of track cleaning for underground Xiangtan electric locomotives is to ensure that the tracks are free from any obstacles or debris that could potentially lead to operational issues such as slippage or derailment.

Common Track-Related Issues:

Two common issues associated with tracks in underground mining environments are slippage and derailment.

These issues often arise due to significant installation errors in the tracks or failure to promptly clean them.

Key Cleaning Standards:

1 - Obstacle-Free Tracks: The tracks should be free from any obstacles such as loose stones, mining debris, or other foreign objects.

These obstructions pose a significant risk of causing derailment or impeding the locomotive's movement.

2 - Absence of Water or Oil Stains: Tracks should be clear of water puddles or oil stains.

Accumulated water or oil significantly reduces the adhesion coefficient between the locomotive wheels and the tracks.

This reduction in adhesion not only increases the risk of slippage but also decreases the locomotive's traction, compromising its ability to operate effectively.

In conclusion, the standards for cleaning underground Xiangtan electric locomotive tracks are straightforward: ensure that the tracks are free from obstacles and debris, and that there are no water puddles or oil stains present.

Adhering to these cleaning standards is essential for maintaining the safety and efficiency of underground Xiangtan electric locomotive operations.

By keeping the tracks clean and obstacle-free, the risk of operational issues such as slippage and derailment can be minimized, ensuring smooth and reliable locomotive operations in underground mining environments.
