Cty8 Ton Battery Accumulator Locomotive For Underground Mine - China

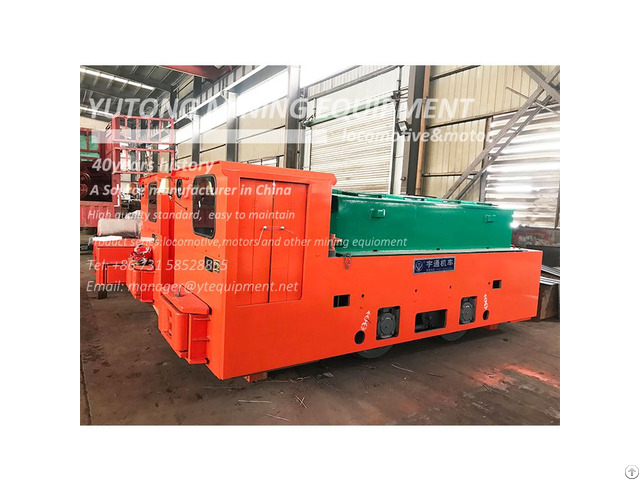

8 Ton Mining Battery Accumulator Locomotive for Underground Mine Battery electric locomotive is a kind of track traction equipment powered by batteries, which is generally used in mines.

There are two types of battery electric locomotives, explosion-proof type and ordinary type.

The explosion-proof type is mainly used in coal mines.

There are also many options in terms of speed regulation and braking methods.

Speed control methods include resistance speed control, chopping speed control and frequency conversion speed control.

Braking methods include pure mechanical braking, hydraulic braking and compressed air braking.

In addition, electric braking can also be selected as an auxiliary braking method.

Adhesive / total weight (t) : 8 ton

Track gauge (mm) : 500.600.762.900

Traction (KN) : 11.18 or 12.83

Max.

Traction (KN) : 19.62

Speed(km/h) : 6.2~7.8

Battery Voltage (V) : 110~140V

Battery Capacity (Ah) : 440

Power (KW) : 11 or 15 KWx2

Dimensions Length(mm) : 4420

Width(mm) : 920, 1082 or 1220

Height(mm) : 1600

Wheelbase (mm) : 1100

Wheel diameter (mm) : 680

Min Curve radius (m) : 7

Controller : Resistencia or IGBT

Braking method : Mechanical or air brake
