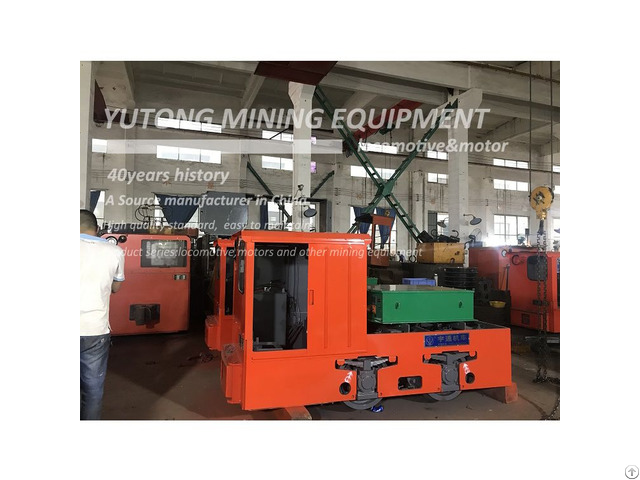

Customized Ton Non Standard 3 5 Lithium Accumulator Locomotive - China

Battery electric locomotive is a kind of track traction equipment powered by batteries, which is generally used in mines.

There are two types of battery electric locomotives, explosion-proof type and ordinary type.

The explosion-proof type is mainly used in coal mines.

There are also many options in terms of speed regulation and braking methods.

Speed control methods include resistance speed control, chopping speed control and frequency conversion speed control.

Braking methods include pure mechanical braking, hydraulic braking and compressed air braking.

In addition, electric braking can also be selected as an auxiliary braking method.

Adhesive / total weight (t) : 3.5 t

Track gauge (mm) : 500.600.762.900

Traction (KN) : 7.06

Max.

Traction (KN) : 12.26

Speed(km/h) : 7

Battery Voltage (V) : 90 or 96

Battery Capacity (Ah) : 385

Power (KW) : 7.5KWx2

Dimensions Length(mm) : 2860

Width(mm) : 920, 1082 or 1220

Height(mm) : 1550

Wheelbase (mm) : 850

Wheel diameter (mm) : 520

Min Curve radius (m) : 6

Controller : Resistencia o IGBT

Braking method : Mechanical or hydraulic brake

Company Contact:

• Posted By: HNYT Equipment Co., Ltd.

• Phone: 17369222201

• Address: No. 2, Fuzhou Road, Jiuhua Industrial Park, Jiuhua Economic Zone, Xiangtan , Hunan , China

• Email:

• Website: https://www.ytequipment.net/

• Business Description: Industrial Equipment & Components , Manufacturing & Processing Machinery , Transportation.

  HNYT Equipment Co., Ltd was established in Xiangtan, a major industrial town in Hunan Province, China.

  Xiangtan has always been China's equipment manufacturing base, and Our Company(HNYT Equipment) quickly ranks in the forefront of the industry with its strong foundation and talent advantages in the manufacturing industry of Xiangtan.

  We have made outstanding achievements in the fields of manufacturing mining electric locomotives, traction motors, industrial and mining electrical appliances and other mining equipment.

  We are a member of China Electrical Equipment Industrial Association and take a leading role in the setting of national and industrial standards.
