Mining 2 5 Ton Battery Locomotive For Underground Tunnel - China

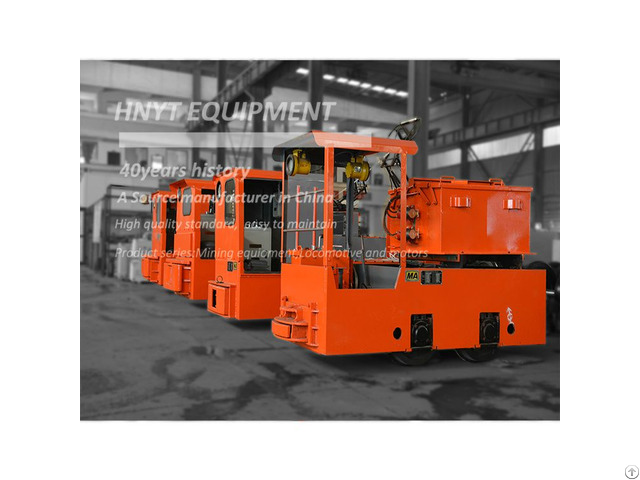

Mining 2.5 ton battery locomotive for underground tunnel How to Extend the Lifespan of Lead-Acid Batteries in Underground Locomotives

Lead-acid batteries serve as the crucial power source for underground locomotives.

To ensure the stable operation of locomotives and extend the lifespan of lead-acid batteries, several key measures can be taken.

1 - Select High-Quality Grid Materials

Grid Selection: The use of high-density lead-antimony alloy grids can significantly slow down grid corrosion.

High-density materials increase the strength of the grid and extend the battery's lifespan.

2 - Optimize Grid Design

Increase the Cross-Sectional Area of Grid Lugs: By increasing the cross-sectional area of the grid lugs and the number of lugs, grid deformation can be effectively reduced.

This design improves the structural stability of the battery and prevents performance degradation caused by deformation.

3 - Choose Tubular Positive Plates

Reduce Active Material Shedding: The use of tubular positive plates can reduce the shedding of active material on the surface of the positive plate.

This improves battery efficiency and lifespan and prevents capacity reduction caused by active material shedding.

4 - Use High-Purity Electrolyte

Electrolyte Quality: Selecting high-purity battery electrolyte can reduce the impact of impurities on the battery interior, lower the self-discharge rate, and extend the battery's lifespan.

5 - Regular Maintenance and Inspection

Regular Checks: Regularly maintain and inspect the battery, including checking the electrolyte level, cleaning the external battery, and testing the battery voltage.

These measures can help identify and address potential problems in a timely manner, preventing failures.

6 - Proper Charging Methods

Avoid Overcharging and High-Current Charging: Charging methods have a significant impact on battery life.

Overcharging and high-current charging should be avoided as much as possible, as this can reduce battery wear and maintain optimal battery performance.

7 - Select High-Quality Battery Containers and Separators

Battery Container and Sepa Total weight (t) : 2.5 ton Track gauge (mm) : 600.762.900 Traction (KN) : 2.55 Max.

Traction (KN) : 6.13 Speed(km/h) : 4.54 Battery Voltage (V) : 48V Battery Capacity (Ah) : 330 Power (KW) : 3.5 KWx1 Dimensions Length(mm) : 2330 Width(mm) : 914, 1076or 1212 Height(mm) : 1550 Wheelbase (mm) : 650 Wheel diameter (mm) : 460 Min Curve radius (m) : 5 Controller : Resistencia or IGBT Braking method : Mechanical
