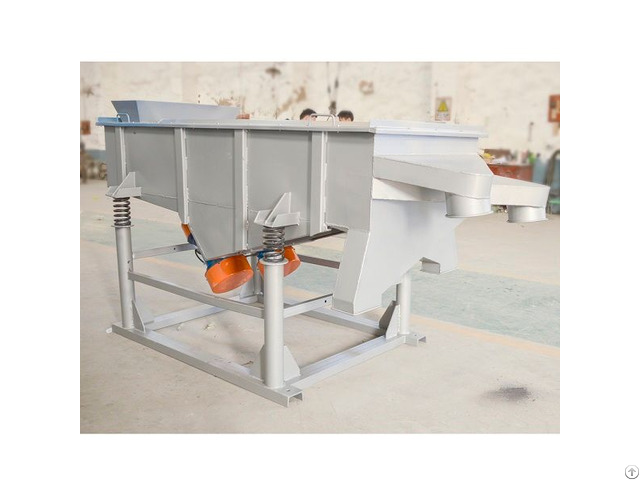

Horizontal Linear Vibrating Screen Sieve Shaker Machine - China

Introduction Multi layer Linear Vibrating Screen Machine is an efficient new screening equipment, which widely used in mining, coal, metallurgy, building materials industry, two sets of horizontal vibration motor to be power source, so that the screened material was tossed in the sieve, while forward in a straight line into the screening machine’s discharging outlet.

It can be supplied of different sizes depending on capacity required.

And can be supplied of multi layer as requirements of screening aim.

Inlets, outlets and legs can be customized to fit your installation requirements.

Working Principle Multi-layer Linear Vibrating Screen uses double vibrating motors to be power source, when two motors synchronous reversely rotate, exciter forces eccentric block generates are undone in parallel with the direction of motor axis and unite as one across the motor axis direction, so its movement trajectory is linear.

There is an angle of inclination two motor axis relative to screen deck, under the influence of exciter force and materials self weight, materials are threw up to make saltatory and linear movement forward on the screen deck in order to screen and grade the materials.

Applied in flowing line to achieve automatic operation.

Features 1 - Simple structure, large screening capacity.

2 - Sealed structure, no dust flying.

3 - Single layer or multi layer are both available, can be installed 7 layers at most.

4 - Bounce balls could prevent the mesh from be blocked through jumping from up to down.

5 - Robust construction for improved fatigue life.

6 - Manufactured in standard models or as per customer requirement.

Application Chemical industry: Resin, powder, paint, fine powder, soda, citric acid

Ceramic industry: Alumina, quartz sand, slurry, glaze and pigment

Foodstuffs industry: Sugar, salt, alkali milk, powder, soybean milk, yeast

Paper making industry: Black and white liquid paper, pulp, waste water recycle

Metallurgy: Metal powder, welding rod powder

Pharmacy: Chinese medicine powder, western medicine powder

Pollutant treatment: Rubbish waste, oil animal, droppings
