Hsp 5b Mining Explosion Proof Wet Shotcrete Machine - China

price: 500.00 Dollar US$

Hsp 5b Mining Explosion Proof Wet Shotcrete Machine

Products Photos Catalog Hsp Mining Explosion Photos Catalog

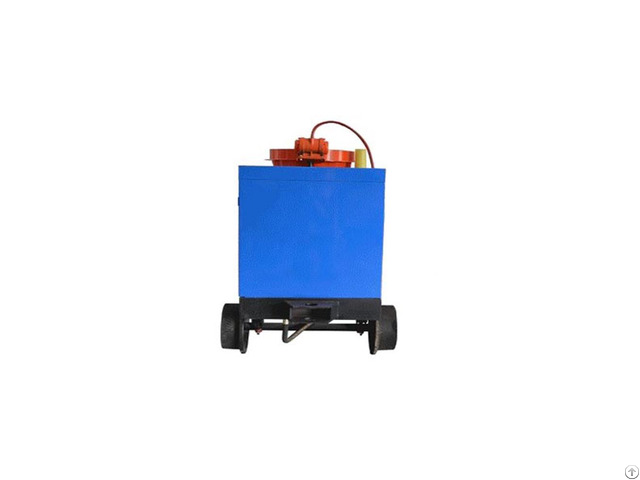

CHINA COAL 0001 HSP-5B Mining Explosion-proof Wet Shotcrete Machine

Keywords: Wet Shotcrete Machine, Explosion-proof Wet Shotcrete Machine, Anti-explosive Shotcrete Machine

Introduction of HSP-5B Mining Explosion-proof Wet Shotcrete Machine

HSP-5B Mining Explosion-proof Wet Shotcrete Machine is widely used or spraying half wet or wet concrete In coal mine, tunnels, culverts, subway, underground engineering and other narrow space.

It has the following advantages:

1 - HSP-5B Mining Explosion-proof Wet Shotcrete Machine was designed with Anti-explosion Motor

2 - special vibration hopper, reasonable four-point fastening mechanism, convenient accelerator adding system.

3 - simple design, advanced technology, compact structure, convenient operation, maintenance and cleaning.

4 - long conveying distance, fewer dusts, reliable performance.

Parameters of HSP-5B Mining Explosion-proof Wet Shotcrete Machine

item HSP-5B

Output 5 m³/H

Max.

Convey dist Horizontal: 30m Vertical: 20m

Concrete proportion 1: 4-5C/A

Water cement ratio ≤0.4

Hose inner size Φ51m

Max.

Aggregate size 15mm

Operating air pressure 0.3-0.6MPa

Air consumption 10-15m³/min

Rotor diameter 438mm

Spring rate level ≤10%

The accelerating liquid adding amount 0.3-0.7%

main Electric motor power Y132m-6-5.5KW

Accelerating metering pump pneumatic

Overall dimension(mm) 1280x700x1280

Whole weight 700kg

Rail wheel gauge 600mm(762or 900mm)


Company Contact:


  • Phone: 865372350961

  • Address: No.11 Kaiyuan Road, Jining , China

  • Email: Email


Published date: August 29, 2018

  • Business Description: Shandong China Coal Industrial&Mining Supplies Group Co., Ltd

    (hereinafter referred to as china coal) is a group company .

    which is a

    collection of e commerce, machinery manufacturing, software, research

    and development, modern logistics of large diversified industrial group.
