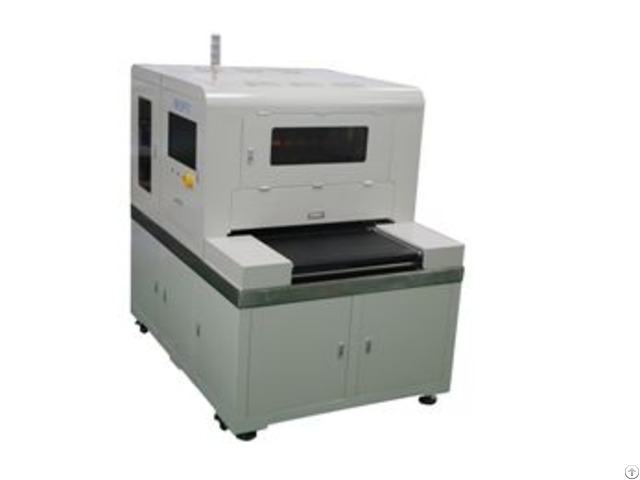

Pcb 3d Aoi Inspection Machine Online Detecting Equipment - China

PCB defect offline / online Detecting Equipment

(Ref : AOI-PCB-R) Equipment Application

This device is mostly used to detect various defects on the PCB inner layer and outer layer board, such as short/open circuit, line width/ line distance tolerance, bump/ recess, pinhole, residual copper, scratch, hole plugs, hole, size and position errors, etc.

Application Area

Applicable to ordinary FR4, high-frequency white board, Teflon board, ceramic board and other hard board materials.

Equipment Features 1 - Simultaneous detection of both front and back sides is completed at one loading ;

2 - Combine high-resolution TDI line-array cameras with high brightness LED line sources with a variety of lighting methods for optical image contrast ; 3 - The automatic loading, unloading machine and the AOI machine are flexibly combined to meet offline or online production requirements;

4 - Create a new product number offline and replace the product number without downtime; More than 4 times the production capacity of the traditional offline AOI, which greatly saves labor costs ; Specification Model AOI-PCB-R online

AOI Detection Section Min width/ line space : 2/2 mil Max capacity : 500 panels / h Production condition ODB++ and Gerber format Board size : 12"×12"-26"×30" Board thickness : 0.05mm-5.0mm Defect type : short/open circuit, line width/line distance tolerance, bump/ recess, pinhole, residual copper, scratch, hole plugs, hole, size and position errors, etc.

Whole Equipment

Dimension : 5000mm (L) *1400mm (W ) *2000 mm (H )

Total weight : 2600KG

Max power consumption : 9.0KW

Power supply : 220VAC 50/60 HZ

Environment temperature : 22℃±2℃
