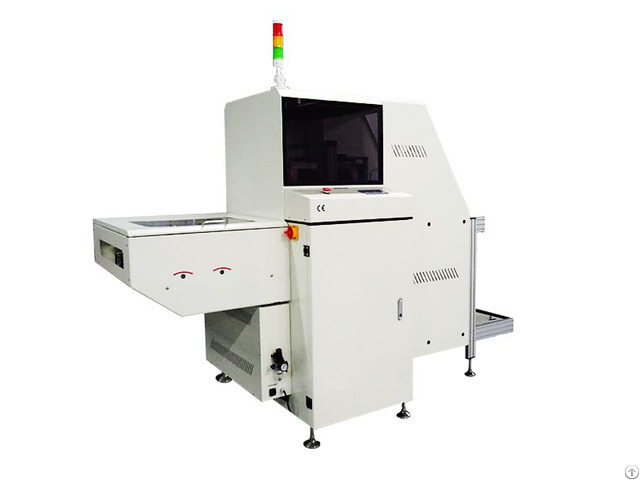

Smt Multi Magazine Unloader - China
price: contact company for price
Application: The Automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher.
The magazine indexes to the next position and is ready for the following unloading cycle.
Connect with SMT and AI production line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate.
Agility operation with high accuracy, automatic counting, fault alarm functions, it is required for a full range of automatic equipment.
Technical Specifications: 1 - Magazine capacity: top 1+ down 2, total 3 magazines 2 - Full CE regulations safety cover
3 - Selectable pitch 10mm up to 40mm
4 - Auto/Manual run modes
5 - Diameter 3mm edge round belt
6 - Component clearance: top 80mm bottom 20mm
7 - Power: AC220V/110V, 50/60 HZ, 1 phase
8 - Air Pressure: 5kgf/cm2 9 - PCB Convey Direction: L-R ( Or R-L) 10 - Front rail fixed ( or rear rail fixed)
11 - Conveyor height: 900+-20mm( standard height for SMT application)
12 - For AI application, please specify the height requirements
13 - Magazine max pcb width available at 250mm(S), 330mm(M), 390mm(L), 460mm(X)
Company Contact:
- Posted By: VANSTRON AUTOMATION CO.,LTD
- Phone: +86-15017908688
- Address: Haobao industrial park, No.43 ,XinEr Road, Shenzhen , Guang Dong, China
- Email:
- Website: https://www.vanstron.com
Published date: December 3, 2019
- Business Description: Vanstron automation is a professional manufacturer of full range of boards handling machine.
A board handling portfolio covers 100% of material handling needs in fast-paced mass manufacturing.
Take as an example segmented conveyors with integrated inspection, transfer conveyors, turn units with the L, T, X function, shuttle gates, lift units, bare board unstackers, magazine buffers, FIFO buffers, line loaders and unloaders.
