S&A chiller for laser source of IPG, MaxPhotonics and nLIGHT

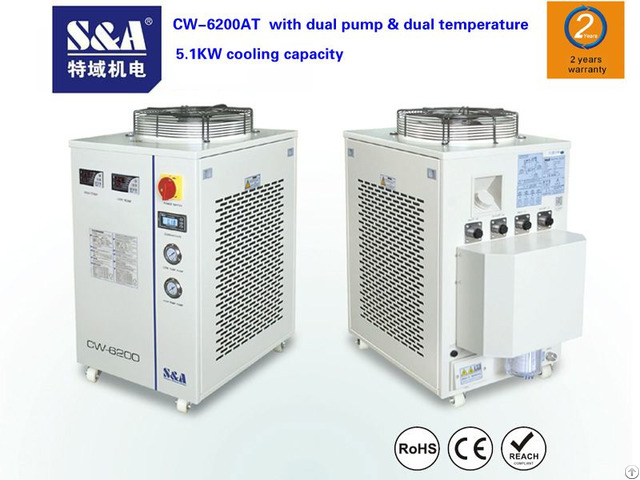

S&A CW-6200AT dual temperature and dual pump series is high-precision compression refrigeration water chiller, with intelligent temperature control, completed configuration, perfect protection and alarm system, it is applied to cool 1KW laser source of IPG, MaxPhotonics and nLIGHT.

S&A CW-6200AT is able to cool the fiber laser and optic lense at the same time, multiple use for saving cost, space and manual move, quiteconvenient for the user.



Features

1 - 5100W cooling capacity; optional environmental refrigerant;

2 - ±0.5℃ precisely temperature control;

3 - The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

4 - Dual temperature and dual pump to satisfy different needs of fiber laser device and the lens;

5 - With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;

6 - Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

7 - Multiple power specifications; CE approval; RoHS approval; REACH approval;

8 - Long working life and easy operation;

9 - Optional heater and water filter.

Model CW-6200AT CW-6200BT

Voltage 220V 220V

Frequency 50Hz 60Hz

Current 2~13A

Compressor power 1.68KW 1.65KW

2.24HP 2.2HP

High + low temp system refrigeration capacity 1706 Btu/h+15820 Btu/h 1706 Btu/h+15940 Btu/h

0.5 KW+4.63 KW 0.5 KW+4.67 KW

430 Kcal/h+3986 Kcal/h 430 Kcal/h+4016 Kcal/h

Refrigerant R-22 / R-410a

Refrigerant charge 1300g 1300g

Precision ±0.5℃

Reducer Capillary

Protection Overcurrent protection for compressor, flow alarm, over temperature alarm

High + low temp pump power 0.1KW + 0.55KW

High + low temp tank capacity 4L + 12L

High + low temp pump lift 25M + 36M

High + low temp inlet and outlet Rp1/2" + Rp1/2"

High + low temp pump flow 16L/min + 70L/min

N.

W 92Kgs

G.

W 102Kgs

Dimension 78 x 47 x 89 cm (L x W x H)

Package dimension 87 x 60 x 109 cm (L x W x H)
