Flake Ice Machine 30 T Per Day - China

Flake Ice Machine 30 T Per Day

Flake Ice Machine biological pharmacy

variety flake ice Flake Ice Machine

Share: Flake Ice Machine 30 Ton Per Day

Fresh Water /Salt Water

Air Cooling/Water Cooling

Flake Ice Thickness: 1.5-2.2mm

Refrigerant: R22/R404A

With PLC Controller

Flake Ice Machine 30T/24H

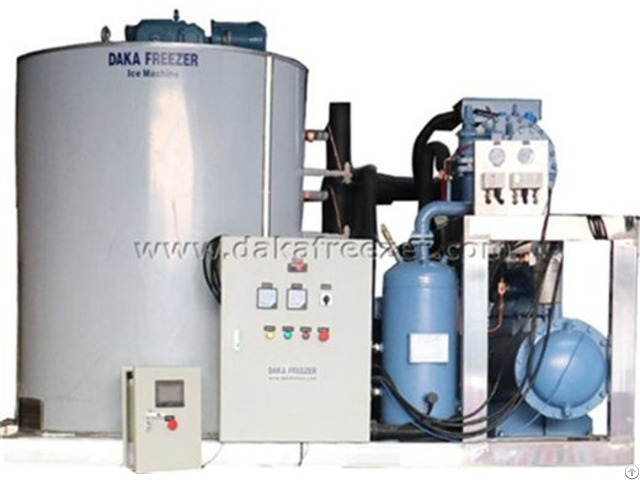

DAKA FREEZER Large-scale industrial flake ice machine(ice production 20T/25T/30T/40T/50T/24H )

Large-scale industrial flake ice machines are specialized in nuclear power construction, environmental protection engineering and railway construction etc.

The large industrial flake ice machines are equipped with Refcomp screw compressor to ensure sufficient ice production and improve energy efficiency.

Advantages of the flake ice machine:

1 - The ice machine has high ice efficiency and small loss of cooling capacity.

2 - Good quality of the flake ice and is dry and not bonded.

3 - The flake ice produced by the flake ice machine is rich in variety, simple in structure

4 - PLC programmable controller of the flake ice machine, with stable performance, random control

5 - The flake ice machine is easy to operate, high standard of hygiene

6 - The flake ice machine with the perfect fault protection device.

Technical Parameters

Model DFI-30T

Capacity 30000kg/24h

Necessory cooling capacity 180KW

Compressor Cooling capacity 201kW

Evaporating temp.

-20℃

Condensing temp.

40℃

Standard water temperature 20℃

Power install 108KW

Compressor 130HP 96KW

Reduction gear 2.2KW

Water pump 7.5KW

Cooling Tower 2.2KW

Power supply 380V/50Hz/3P

Water pressure 0.1Mpa-0.5Mpa

Refrigerant R22/R404a

Ice temperature -5℃

Net weight 3300kg

Machine size 4000mm×2100mm×2500mm


Cold storage room 3800*4300*2300mm

1 - Standard conditions: Ambient temperature 25℃, water inlet temperature 15℃, evaporating temperature -22℃, condensing temperature 40℃.

2 - Thickness of the flake ice: 1.5mm-2.2mm, it can be adjustable.

3 - The above parameters will be changed subject to the technical invotation without further notice.
