S And A Air Cooled Water Chiller Of 3kw Cooling Capacity - China

S&A air cooled water chiller of 3KW cooling capacity

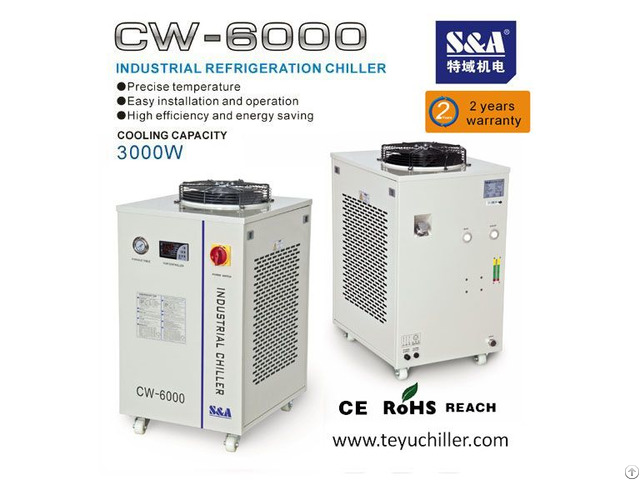

CW-6000 air cooled water chiller with compressor refrigeration is developed and produced by S&A company of China.

CW-6000 water chiller has 3000W cooling capacity with ±0.5℃ stability, it has 2 temperature control modes as constant temperature and intelligent temperature control.

Under intelligent mode, the water temperature is adjusted according to ambient temperature.

Since January 2016, the warranty period of S&A chiller has extended to 2 years.

Water chiller parameter:

Model CW-6000AH CW-6000BH CW-6000DH CW-6000AI CW-6000BI CW-6000DI CW-6000AN CW-6000BN CW-6000DN

Voltage 220V 220V 110V 220V 220V 110V 220V 220V 110V

Frequency 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz

Current 1~4.5A 1~10A 1.5~5.5A 1.5~10.5A 2~6A 2~11A

Compressor power 0.965KW 0.895KW 1.12KW 0.965KW 0.895KW 1.12KW 0.965KW 0.895KW 1.12KW

1.28HP 1.22HP 1.52HP 1.28HP 1.22HP 1.52HP 1.28HP 1.22HP 1.52HP

Refrigeration capacity 10286Btu/h 9502Btu/h 10724Btu/h 10286btuh 9502Btu/h 10724Btu/h 10286btuh 9502Btu/h 10724Btu/h

3.015KW 2.785KW 3.145KW 3.015KW 2.785KW 3.145KW 3.015KW 2.785KW 3.145KW

2592Kcal/h 2395kcal/h 2711Kcal/h 2592kcal/h 2395kcal/h 2711Kcal/h 2592kcal/h 2395Kcal/h 2711Kcal/h

Refrigerant R-22/R-410a

Refrigerant charge 800g 750g 650g 800g 750g 650g 800g 750g 650g

Precision ±0.5℃

Reducer Capillary

Protection Overcurrent protection for compressor, flow alarm, over temperature alarm

Pump power 0.05KW 0.1KW 0.37~0.75KW

Tank capacity 15L

Inlet and outlet Rp1/2"

Max.

lift 12M 25M 28~53M

Max.

flow 13L/min 16L/min 70L/min

N.

W 60Kgs 72Kgs

G.

W 70Kgs 82 Kgs

Dimension 67 X 47 X 89 cm (L X W X H)

Package dimension 74 X 60 X 109 cm(L X W X H)

About S&A Brand

S&A produces more than 60000 units of industrial chillers by year, we always insist on”Quality First” in design and production.

“S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad, and export rate reaches above 60%.
