S And A Industrial Water Chillers Cw 6300 Support Modbus Communication - China

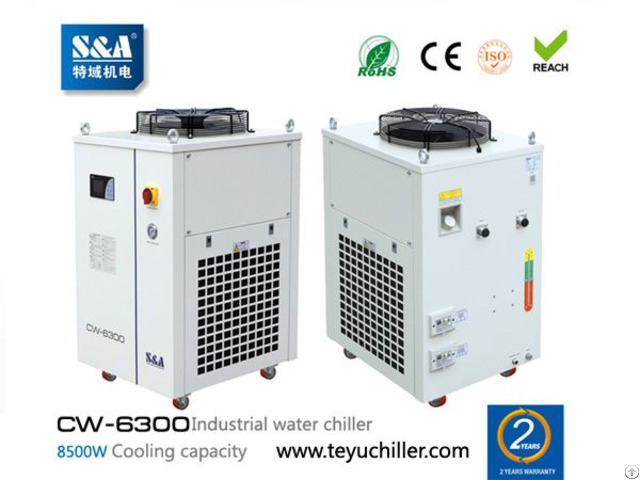

S&A industrial water chillers CW-6300 support ModBus communication

CW-6300 chiller is producing by S&A company.

S&A has independent R&D on sheet metal, evaporator, condenser and cores parts of chiller.

With 15 years development, gradually grow as the industry standard builder and quality guarantee.

CW-6300 chiller features:

1 - 8500W cooling capacity; optional environmental refrigerant; 2.

±1℃ precisely temperature control; 3 - The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

4 - Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

5 - Multiple power specifications; CE, RoHS and REACH approval;

6 - The chiller supports the Modbus-485 communication protocol, which can realize the communication between the laser system and multiple chillers.

It can mainly realize two functions: to monitor the working state of the chiller and modify the parameters of the chiller.

7 - Long working life and simple operation; Optional heater and water filter.

CW-6300 parameter: Voltage: 1P 220V/3P 380V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a Pump power: 0.37~1.1KW; Tank capacity: 45L

Max.

lift: 28~53M; Max.

flow: 70L/min- 116L/min

N.

W: 165Kgs; G.

W: 210Kgs;

Dimension : 83 X 65 X 117 cm (L X W X H); Packing dimension: 111 X 85 X 140 cm(L X W X H)

About S&A Brand

S&A(TEYU) was founded in 2002 - After 15 years of development, the headquarter covers an area of 18, 000 square meters, and has about 250 employees.

Why choose S&A

Product Advantages: 1 - With 11 patent certificates, CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warrenty

2.

±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;

3 - Establish logistic warehouses at USA and Europe;

Manufacturing Advantages: 1 - Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;

2 - Anual ouput 60, 000 units, product exports rate above 60%；

3 - Standard bulk production, standard parts rate up to 80% ；

4 - With excellent laboratory testing system, simulates actual working environment for chiller.
