S And A Recirculating Chiller Cw 6100at For Raycus 500w Laser - China

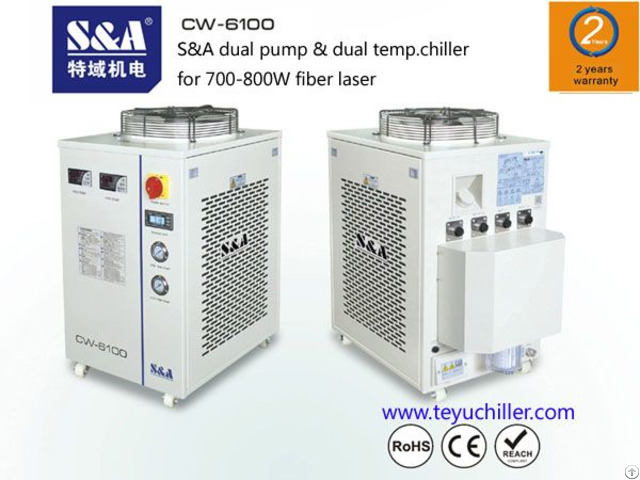

S&A recirculating chiller CW-6100AT for Raycus 500W Laser

S&A CW-6100AT dual temperature and dual pump series is high-precision compression refrigeration water chiller, with intelligent temperature control, completed configuration, perfect protection and alarm system.

It is fit for cooling Raycus 500W laser.

S&A CW-6100AT is able to cool the fiber laser and optic lense at the same time, multiple use for saving cost, space and manual move, quiteconvenient for the user.

S&A water chiller CW-6100AT features

1 - 4200W cooling capacity; optional environmental refrigerant;

2 - ±0.5℃ precisely temperature control;

3 - The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

4 - Dual temperature and dual pump to satisfy different needs of fiber laser device and the lens;

5 - With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;

6 - Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

7 - Multiple power specifications; CE approval; RoHS\REACH approval;

8 - Long working life and easy operation;

9 - Optional heater and water filter.

CW-6100AT parameter: Voltage: 220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a Pump power: 0.1KW+0.55KW; Tank capacity: 4L+12L

Max.

lift: 25M+36M; Max.

flow: 16L/min+70L/min

N.

W: 90Kgs; G.

W: 100Kgs;

Dimension : 78 X 47 X 89 cm (L X W X H); Packing dimension: 87 X 60 X 109 cm(L X W X H) About S&A Brand

S&A produces more than 60000 units of industrial chillers by year, we always insist on”Quality First” in design and production.

“S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad, and export rate reaches above 60%.
