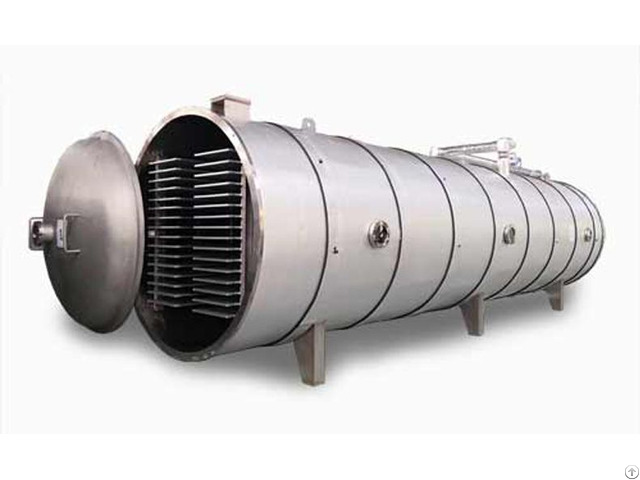

Toffon Freeze Dryer Tf Fzg 200 - China

The FZG series freeze dryer is produced via standardized manufacturing procedures, tailored to address the processing and production requirements of diverse items—including various food products, traditional Chinese medicinal herbs, and industrial raw materials.

It is built with premium-grade materials and incorporates imported components that have gained broad acceptance within the industry.

Moreover, advanced manufacturing techniques are applied during production, guaranteeing that the equipment fully meets GMP standards.

Key Equipment Features

Both the freeze-drying chamber and its partitions strictly adhere to GMP specifications.

The chamber cylinder is constructed from 304 stainless steel, with an interior finished via mirror polishing—outperforming the manufacturing processes and standards implemented by typical domestic manufacturers of food freeze dryers.

It adopts an integrated design for the freeze-drying chamber and cold trap, following a "front-chamber, rear-trap" arrangement.

An observation window with lighting is installed to allow easy viewing of the chamber’s interior.

This design not only simplifies cleaning but also eliminates any sanitary blind spots.

Partitions are custom-made to match customer needs.

Fabricated from 304 stainless steel, they undergo processing with surface-drawn square steel sections, resulting in a smooth surface that is simple to clean and maintains high hygiene standards.

The water-collecting coil inside the cold trap is made of clean stainless steel.

Customers can opt for either an integrated or a split structure based on their specific demands.

Components of the refrigeration system are selected from high-standard imported brands, providing robust cooling capacity, rapid cooling speed, and consistent, dependable performance.

The vacuum system offers multiple vacuum pump combinations to satisfy customer requirements, utilizing high-quality vacuum pumps supplied by AiFa Technology.

It is fitted with an imported Omron PLC control system, which enables straightforward data storage and operation.

The control system supports both automatic and manual modes, allowing for flexible switching between them.

Multiple sets of process settings can be configured, and formulas can be adjusted during the drying process, permitting flexible modification of operation steps.

It employs immersion or steam-based defrosting methods, ensuring quick and thorough defrosting while also facilitating easy cleaning.

It comes with a pre-freezing function, obviating the need for an external pre-freezing storage device and minimizing the risks of material liquefaction and contamination.

It boasts process adjustment capabilities, featuring curve-based temperature control and adjustable temperature/vacuum control functions to accommodate the processing needs of different materials.
