Gigabit 5 Port Poe Switch - China

5 RJ-45 10/100/1000M ports POE Switch with power adapter

Product Description:

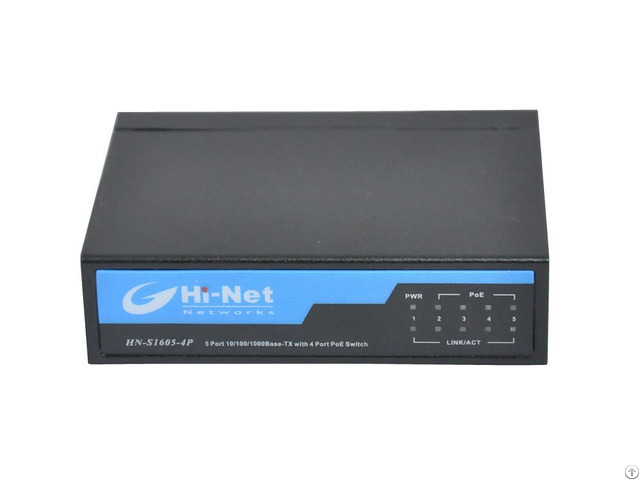

The S1605-P is a Small size 5 ports gigabit POE switch which is designed by Hi-Net Technology Company.

It provides 5 10/100/1000Mbps Auto-Negotiation RJ45 ports; All five ports support Auto MDI/MDIX functions which include 4 ports with POE function (Port2-5).

The POE ports can automatically detect and supply power for the IEEE 802.3af or IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc.

The S1605-P is a small size metal-shell device which is useful for the small office, home and the IP solution project using.

All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max.

Three optional power supplies for your choice (65W, 96W, 135W, can choose from the order list).

Extend Function: Power lightning protection, solid vlan.

Products Features:

• IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

• Provides 5 10/100/1000Base-TX ports, • 4 POE Ports (Ports 2-5), Each POE port output 30W max power

• High back-plane bandwidth 10Gbps

• Reliable Power Adapter supply power for both network switch and POE

• Three optional power adapters: 65W, 96W, 135W

• IEEE802.3x Flow control

• Surge protection for power port and data ports

• Supports PoE IEEE802.3af and IEEE802.3at compliant Powered Device (PD)

• Small size metal case for the POE switch

• EMI standards complies with FCC, CE class B

• Extend Function: Power lightning protection, solid vlan.

Products Specifications:

Item Description

Summarize

Fixed Port 5 10/100/1000Mbps RJ45 port

POE Ports 4 PoE ports (Port 2-5)

LED Indicators PWR, PoE, Link/Act LED.

Input voltage 100V～240V AC, 50/60Hz (for power adapter)

48VDC (for switch)

Network Media 10BASE-TX: UTP category 5, 5e cable (≤250m)

100BASE-TX: UTP category 5, 5e cable (≤150m)

1000BASE-TX: UTP category 5, 5e cable (≤150m)

Forwarding Rate 10BASE-T: 14880pps/port

100BASE-TX: 148800pps/port

1000BASE-TX: 148800pps/port

Power Supplies 65W, 96W, 135W Optional

Operating temperature 0℃～40℃.

Storage temperature -10℃～70℃.

Relative humidity 20%～85% (non-condensing).

Thermal methods Fanless.

Switching capacity 10G.

MAC address table 4K.

Traffic control IEEE 802.3x full-duplex flow control.

Size 9.2*6.9*2.5cm

Package Size 19.1*14.1*6.4cm

Weight 0.7Kg

Package S1605-P POE switch

User Manual

Power Adapter

Power Cable

Warranty Card

PoE

PoE port 4 10/100/1000Base-TX ports.

PoE Standard IEEE802.3af, IEEE802.3at, per port 15.4W, max30W

Pin assignment V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6).

Extend Function Power lightning protection, solid vlan.

Order Information:

S1605-4P-65W 5 ports Gigabit Switch with 4 PoE Ports(Total Power 65W)

S1605-4P-96W 5 ports Gigabit Switch with 4 PoE Ports(Total Power 96W)

S1605-4P-135W 5 ports Gigabit Switch with 4 PoE Ports(Total Power 135W)
