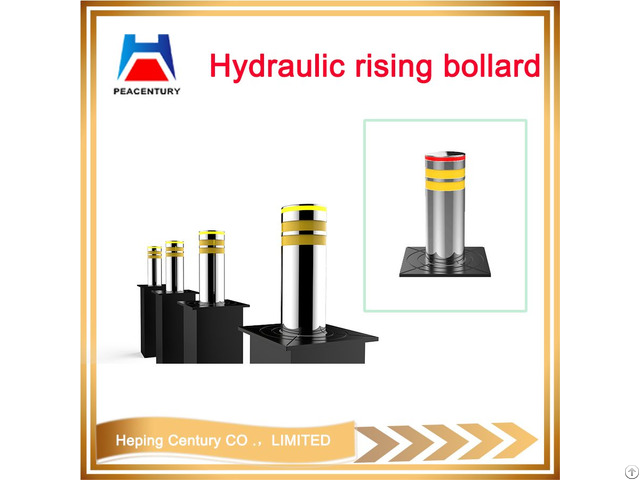

Hydraulic Bollard Automatic Rising Bollards Electric - China

NAME: Hydraulic Rising Bollard BRAND NAME: PEACENTURY

LIFTING COLUMN DIAMETER (MM): 219 (error ± 2mm) DIMENSIONS: LENGTH * WIDTH * HEIGHT (MM): 360 * 360 * 1080 (error ± 10mm)

LIFTING COLUMN CYLINDER THICKNESS (MM): 6 (can Be Customized According To Customer Needs) LIFTING HEIGHT (MM): 600 (error ± 2mm)

LIFTING TIME (SECONDS): 2~6 PRESSURE CAPACITY: 120 Tons Of Container Trucks

ANTI-COLLISION FORCE: K12 PROTECTION LEVEL: Up To IP68

ANTI-DESTRUCTION LEVEL: Up To M30~M50 WORKING TEMPERATURE (°C): -40~+75

STORAGE ENVIRONMENT: -10 ° C --- 75 ° C, Rain And Moisture Proof DRIVE UNIT: Two-way Integrated Hydraulic

WEIGHT (KG): 180 POWER SUPPLY (V): AC110-240V, 50Hz

RUNNING NOISE: ≤60 Db REMOTE CONTROL DISTANCE: Approx .

50m-100m

RISE TIME: ≤3-4S (adjustable) FALL TIME: ≤3-4S (adjustable)

CONTROL SYSTEM: Integrated Electro- Hydraulic MATERIAL: 304 Stainless Steel

Hydraulic Bollard automatic rising bollards automatic electric bollards System Control electric hydraulic Raised Height (Mm) 600mm(customized available)

Material 304staineless steel or A3 steel with painting Bollard Dia (Mm) 168, 219, 273 mm

Color customized Thickness (Mm) 6 mm (Customized)

Power Supply 380V(control voltage 24V) Weight (Kg) + 180 kg

System Dynamic Power (W) 3.7Kw Led Light extra charge

Casing Size L500 *W500 *H900/L600 *W600 * H900 Full Set Includes bollard, hydraulic station, control box

Main Function: l Structure : With load-bearing steel beam column, anti-collision steel beam column, 4 navigation rod l Integrated electrical mechanism : stroke 600mm, Cylinder outer diameter 60mm, Rod diameter: 16mm.

l 6k Mirror cylinder l Colorful With LED (Acrylic light circle) l Reflective sticker : 2 strips l Gang-control interface l Can be manually fall down if power cut.

l Available to reverse operation during rising or falling down l Hydraulic drive comes with hydraulic lock l PLC programming command control system l LCD display, Both Chinese and English menu.

l PLC built-in encryption system

Company Contact:

• Posted By: Shenzhen Heping Century Technology Co., Ltd

• Phone: 8617820602014

• Address: Longgang District, Shenzhen , Guangdong , China

• Email:

• Business Description: Business Type：Manufacturer& International Trading Company

  Location：Shenzh en，China (Mainland)

  Main Products：Walk Through Metal Detector，X-Ray Baggage Scanner，Hand Held Metal Detector，Under Vehicle Inspection System，Hydraulic Rising Bollard，Hydraulic Road Blocker，Tire Killer，Gold Detector，Barrier Gate etc.

  SHENZHEN HEPING CENTURY TECHNOLOGY CO., LTD （PEACENTURY）is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine technology, metal detection technology, explosive detection, liquid detection and relative security services.

  We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.

  We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .
