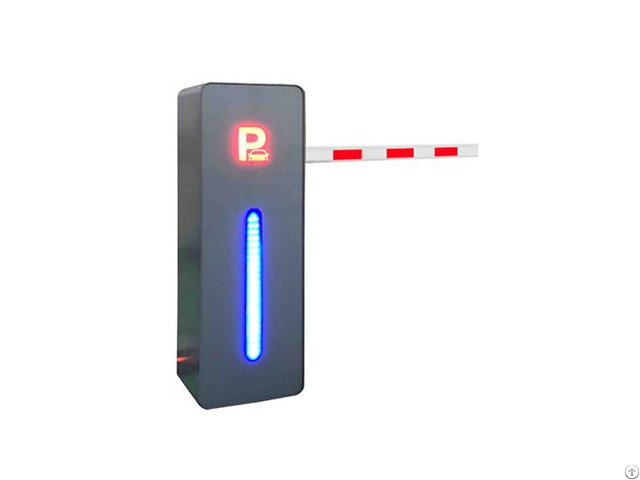

Parking Barrier Gate Jddz 8 - China

DC24V brushless motor digital electric parking barrier gate, car park barrier system with longer life span of 4.5 million times Parking barrier gate JDDZ-8 is an efficinet vehicle access control solution for controlling entry of authorized resident vehicles at safe pre-determined time intervals, coming with compact and stylish design for restrict areas with high traffic flow.

The combination of the advanced digital DC24V brushless motor and a planetary gearing system with sinusoidal movement for a soft start and soft stop action, ensures a smooth elevation or lowering of the barrier arm, and avoiding bounce in the end position.

On the other hand, automatic car park gate JDDZ-8 provides variable speed 0.6~ 6 seconds for different boom length.

In general, each boom length is set to a standard operational speed but can be simply adjusted directly from control board to get a faster or slower speeds depending on the requirement.

Designed for both indoor and outdoor application, providing a rapid, reliable and smooth operational way with low noise and low power consumption, and flexibly integration various access control systems, parking lot barrier gate JDDZ-8 is generally used in commercial and industrial applications such as controlling access to parking lots and garages in large business complexes, airports and public facilities.

Parking Barrier Gate Featurers

1 - Speed 0.6 second up to 6 seconds depending on the settings

2 - Energy saving DC24V brushless motor gearbox

3 - Manual operation in the event of power failure

4 - Smooth and efficient operation

5 - Secure operation with safety devices

6 - Possibility of integration with any type of access control systems

7 - Slim profile; fits on narrow islands

8 - Environmentally durable cabinet

9 - User-friendly and optimum accessibility

10 - Easy installation and service Parking Barrier Gate Applications

Private and company premises

Industrial and hospital premises

Tunnels

Motorways

Public facilities

Shopping mall Parking Barrier Gate Parameters

Power Supply: AC220V/ AC110V±10%, 50/60hZ

Rated Power: 140W

Motor Type: DC 24V brushless digital motor

Motor Speed: 1500RPM

Open Time & Boom Length 1.0~1.2 seconds 2.5 meter straight boom 1.5~2.0 seconds 3.0 meter straight boom

2.0~2.5 seconds 3.5 meter straight boom

2.5~3.0 seconds 4.0 meter straight boom

3.0~3.5 seconds 4.5 meter straight boom

3.5~4.0 seconds 5.0 meter straight boom

4.0~4.5 seconds 5.5 meter straight boom

5.0~6.0 seconds 6.0 meter straight boom

Max 4.5 meter articulated boom

Noise: ≤60dB

Error Action: ≤0.0%

Interfaces: IR sensor, vehicle detector, RS485, open/ close/stop

Output: Relay output, max AC240V, 5A bearale

Life Cycle: ≥4.5 million times

Work Temperature: -35ºC~60ºC, Relative humidity: ≤90%, no condensation
