Security Check Equipment Under Vehicle Monitoring System Used In Airport Railway Station Hotel Etc - China

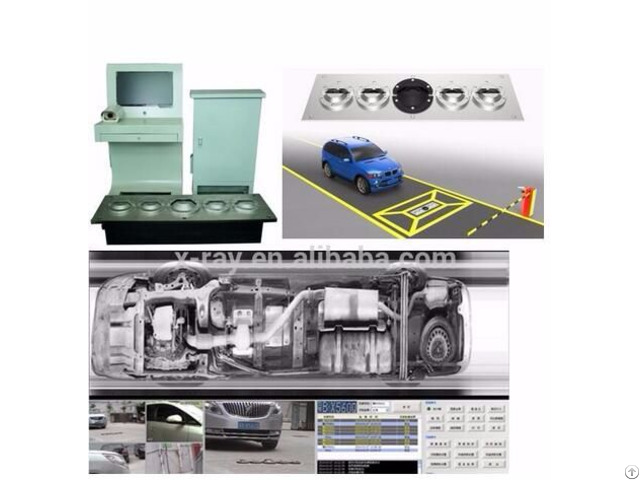

Under Vehicle inspection system Car video monitoring System with LPR

Model: UV300-F

Parameters:

1 - Store or load time: <1 second;

2 - Vehicle Image local magnification: > 2 times;

3 - Vehicle Image scaling: 16 times;

4 - Vehicle image display mode: large format transverse;

5 - Vehicle image storage format: BMP or JPEG;

6 - System interface language: English (can be customized);

7 - Display resolution: 1920 * 1080P

8 - Communication interface: RS232/RS422;

9 - Scene image display: ≥1 channel

10 - Speed identification: when the vehicle pass the scanner and stops suddenly, then restart, the device can identify automatically, system will display the complete vehicle image

11 - Scan mode: linear scanning, the ground sensor coil trigger;

12 - Vehicle speed: 1-60km/h, suggest speed : less than 30km/h

13 - View angle: 175 degrees

14 - Image Longitudinal resolution: 2048 pixels CCD;

15 - Scanner connecting cable: 100 meters (can be customized)

16 - Lighting components : Four single sealed LED surface light source ;

Life : 100, 000h

17 - Under Vehicle image scanner with a unique open-wide field scan design;

18 - Working voltage: DC24V

19 - Power Supply: AC110V-240V/50-60H z

20 - Structure design: single sealed design;

21 - Loading weight: 30 Tons

22 - Scanner size: 1200*350*210mm

23 - Weight: 180kg

24 - Environment temperature: -40 degrees - +70 degrees

25 - License plate recognition (need customer provide the SDK LPR software of the exported country, we can integrate it to the UVSS without extra cost )

Computer:

1 - Display: 22 inch color LCD Screen

2 - CPU: INTEL core Quad-Core Processor

3 - Motherboard : dedicated motherboard

4 - Memory : DDR3 , more than 4GB

5 - Hard disk : 500G high-speed hard disk

6 - Graphics card : DDR3, 192BIT independent graphics

7 - Appearance: stainless steel composite material

8 - Working current: 3A

9 - Working temperature : -20 ℃ ~ 55 ℃

Our Services

OEM, ODM

One year warranty

Lifelong maintenance and technical support

Company Information

9 years professional manufacturer for security products: metal detectors, X-ray baggage scanners, Under vehicle inspection system, Explosive detectors etc.
