Security Check Equipment X Ray Baggage Scanner Sf8065 - China

price: 1.00 Dollar US$

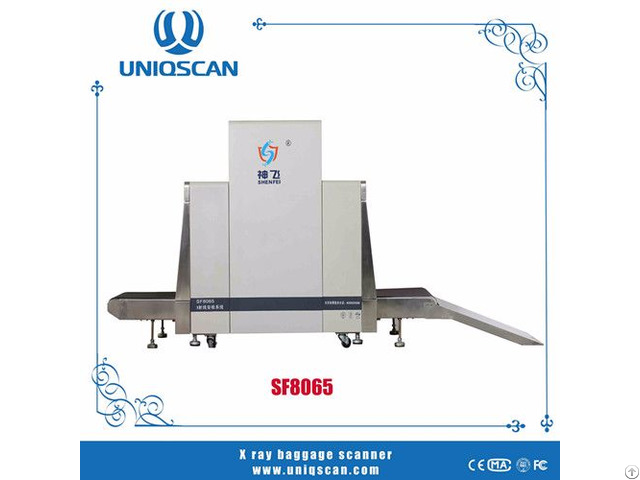

Security Check Equipment X Ray Baggage Scanner Sf8065

Products Photos Catalog Security Check Photos Catalog

Product Description

X-Ray Baggage Inspection Machine

Model: SF8065

General Specifications

Tunnel Size : 800 (W) * 650 (H) mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 200 kg

Single inspection dosage:

< 1.15μGy

Leakage radiation: <0.14µGy/h

Wire Resolution: 40AWG

Steel Penetration: 38mm

Film Safety: For ISO 1600

X-RAY GENERATOR

Orientation: Downward

Tube Current: 0.4~1.2mA(adjusta ble)

Anode Voltage: 100~160KV(adjusta ble)

Angle: 80°

Generator cooling/working periods: Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity: 20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<55DB

X-RAY Sensor:

L-shaped array detector, 24bit

Image Performance System:

Display: High-resolution 19 inch color LCD display

Color quality: 24-Bit real colors based on materials

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier: Partial magnifying function

Brightening/dimming: Increase/Decrease brightness of image

Image recurrence: Display the previous twenty images and process any one of them

Image restoration: Restore image to initial status

Image storage: Real-time store any image and process it in operation status

Multi-energy: High/low energy: Switch from high energy to low energy

Color material identification: Organic objects in orange, inorganic objects in blue,

mixture in green

Assist to detect drug and explosive powder

Special features:

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray: Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye: Capable of expediently observing the magnifying area

Self-diagnosis function: Give message automatically if malfunction for prompt maintenance


Company Contact:


  • Phone: 8675528793799

  • Address: 3/F Building A1, Fenghuang Industrial Park, Fenghu, Shenzhen , China

  • Email: Email


Published date: June 20, 2016

  • Business Description: Our company is called Shenzhen Unisec Technology Co., Ltd a professional

    baggage x-ray scanner equipment manufacturer, specialized in the

    development and research of the x-ray imagine technology, metal

    detection technology, explosive detection, liquid detection and relative

    security services.
