Rapid Heated Pressing Furnace Up To 1600 And 5t With Stainless Steel Vacuum Chamber - China

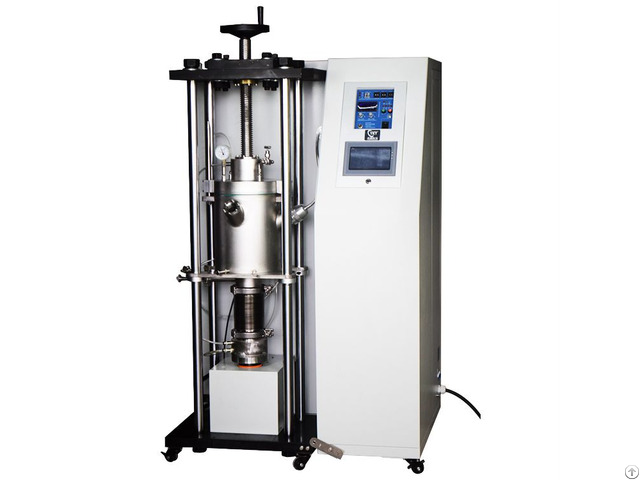

It is a Vacuum Rapid Heated Pressing Furnace (VRHP or RHP) designed for making dense pallets under vacuum or the protective gas environment.

A 15 kW temperature controllable induction heater is integrated into the system, which provides sufficient power for rapidly heating the graphite pressing die up to 1700 ℃.

The Induction coil is built inside of stainless steel vacuum chamber.

An electric hydraulic press is inserted from the bottom of the chamber, providing up to 5 tons pressing force.

Technical parameters:

Max.

Pressure: 5 metric tons (10 MPa on pressure gauge).

Hydraulic Electrical Presser

Piston diameter: 60 mm.

Vertical move distance: 35 mm.

Automatic pressure controller

Induction Heater

Working current: 40 A (with a 60 A breaker).

Maximum input power: 15 kW.

Output frequency: 30 ~ 80 kHz.

Duty cycle: 80%.

Max.

Working Temperature : 1600 ℃ max duration time: < 30 min.

Ultimate Temperature: 1700 ℃ <1 min.

(This might cause damage of thermocouple)

Air cooling: fan.

Protection: water pressure monitoring, high-temperature protection, and overpower protection.
