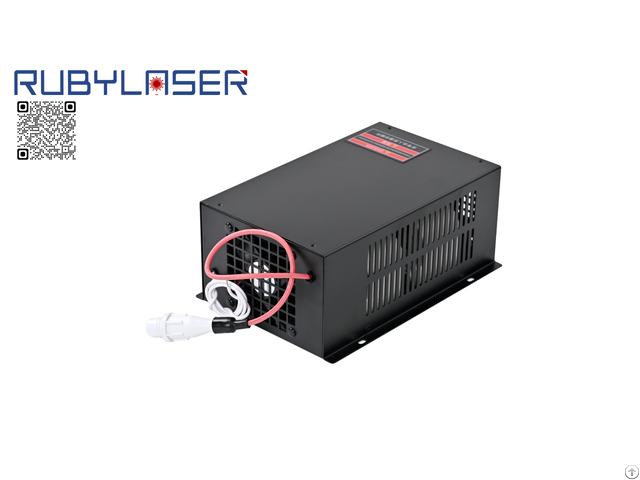

Digital Display Black Color 120w Co2 Laser Power Supply For 1060 1390 1325 Cutting Machine - China

Specification

Input

Input voltage

AC220V±10%

(AC110V specified while order)

AC frequency

47~440HZ

Maximum input power

820W

Maximum input current

3.7A

Output

Maximum output voltage

35KV

Maximum output current

35mA

(depending on the laser tubes of different manufacturers)

Efficiency

More than 90% (Full load)

Response speed

Less than 1ms

Control interface

TTL multilevel switching control, effective level can be high and low selection (see control wining diagram)

Insulation

input-output

AC 1500V 1 minutes not more than 10mA

input-shell

AC 1500V 1 minutes not more than10mA

Output-shell

Connection

Open Circuit Protection

Can be short circuit (requires a good grounding shell, while avoiding the positive electrode and the shell between the arc)

Environmental Requested

Working temperature

-10ºC~50ºC

Relative Humidity

Maximum 85%RH (non-condensing)

Dimensions (LxWxH)

230mmx142mmx95mm

Product Details

Digital Display Black Color 120W CO2 Laser Power Supply for 1060/1390/1325 CO2 Laser Cutting Machine

•Standard Control Interface:

Equipped with H/L/P/G/IN/5V ports for signal input.

The unit features a durable black steel enclosure for enhanced protection.

•High Stability and Reliability:

Each power supply undergoes full-load aging at 52–55°C for 24 hours to ensure consistent performance and long-term stability.

•Flexible Power Control:

Supports 0–5V analog or PWM signal input for precise laser power adjustment.

•Wide Compatibility:

Designed to drive 1400–1500mm CO2 laser tubes from leading brands such as EFR, Yongli, SPT, and Weiju.

Offers strong adaptability, fast response, and excellent engraving and cutting performance.

•Comprehensive Protection:

Built-in open-circuit protection prevents laser tube damage during short-term open-state operation.

•Simple and Efficient Control:

Supports high/low and TTL-level signal control for quick laser start/stop.

Includes protection switches for water flow and ventilation monitoring.

•Advanced Silicon Carbide Technology:

Replaces traditional transistors for higher efficiency, lower heat generation, and improved durability — ideal for long-term operation in high-temperature environments.

•Optimized Circuit Design:

Reduced circuit complexity minimizes failure rates and ensures consistent power output for superior engraving and cutting quality.

•Automated Manufacturing Process:

Uses fully automated SMT assembly with HD camera inspection for circuit boards and solder joints, ensuring high precision and quality consistency.

•Enhanced Safety:

Silicone-wrapped HV output cable prevents electrical discharge and enables stable operation in humid environments.

•Optional Voltage Stabilizer:

Compatible with 90–270V stabilizers for improved performance and protection.

•WX means it supports LCD display screen

•Optional LCD Display Module:

Displays output current, working status, and fault codes.

Output current can be adjusted via a rotary switch.

Available in 1-, 4-, or 8-channel configurations.

Optional LCD Display

An optional external LCD display is available to provide real-time visibility of operating current, system status, and fault diagnostics.

The display is equipped with a rotary control knob that allows users to conveniently and precisely adjust the output current.

The standard configuration supports a single control channel, while 4-channel and 8-channel versions are available for applications that require multi-channel monitoring or centralized control.
