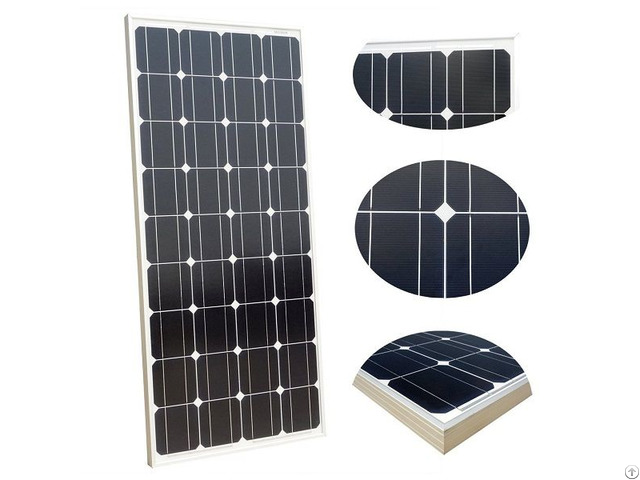

100w 12v Monocrystalline Solar Panel For Pv Systems - China

The Eco-Sources 100W 12V Monocrystalline Solar Panel is our most popular product! High in power but sleek in size, this 100W solar panel is the perfect item for off-grid applications.

Use it for your RV when camping, or during beach trips with the family, either way, this monocrystalline panel provides you with the most effective per space.

With a set of MC4 connectors coming directly off the panel, connecting with other Eco-Sources panels is a breeze.

Features

The basic component of the solar panel system, caravan, RV, boat, Greenhouse solar panel system.

Easy Installation with the pre-drilled hole.

Each solar panel comes with a 90cm 12awg cable with MC4 Male/Female quick connectors.

By-Pass Diode minimized the impact of shade.

Waterproof IP-65 Rated Junction Box: Advanced water and dust proof level (complete protection against environmental particles and low-pressure water jets).

Resistance to Salt Corrosion and Humidity.

Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).

Specification

Rated power 100W

Voc 21.6V

Vop 17.9V

Short circuit current (Isc) 6.13A

Working current (Iop) 5.78A

Output Tolerance ±3%

Temperate coefficient of Isc (010+/- 0.01 )%/ ℃

Temperate coefficient of Voc – (0.38 +/-0.01 )%/ ℃

Temperate coefficient of power Voc -0.47%/℃

Temperature range -40℃ to +80℃

Frame Heavy duty aluminum

Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm

SLA Battery Voltage 12V

Dimensions (L x W x H)mm 1210x541x35mm

Weight 24lbs(11KG)

Warranty 25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate

5-year material and workmanship warranty

Application

Eco-Sources rigid 100w mono solar panel is widely used on solar system, caravan, RV, Boat, greenhouse, solar pump watering system.
