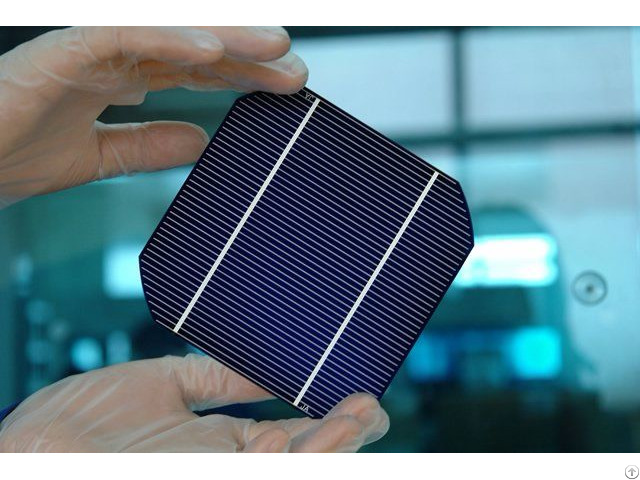

156mm Mono Crystalline Solar Cells - China
price: 0.38 Dollar US$
Thickness(Si): 200±20 μm
Dimension: 156mm×156mm±0.5mm
Diagonal: 200mm±0.5mm (round chamfers)
Front(-) Back(+)
Blue anti-reflecting coating(silicon nitride); Aluminum back surface field;
1.3mm wide bus bars; 2.0mm wide soldering pads;
Distance between bus bars: 52mm.
Distance between bus bars : 52mm.
Mono (156*156) cell Electrical Characteristics (what is solar cells) Efficiency(%)
20.00
19.20
19.00
18.80
18.60
18.40
18.20
18.00
17.80
17.60
17.40
17.20
Pmpp(W)
4.59
4.54
4.49
4.45
4.40
4.35
4.30
4.26
4.21
4.16
4.11
4.08
Umpp(V)
0.541
0.540
0.538
0.535
0.533
0.530
0.527
0.523
0.519
0.518
0.516
0.514
Impp(A)
8.484
8.407
8.346
8.318
8.255
8.208
8.159
8.145
8.112
8.031
7.950
7.869
Uoc(V)
0.640
0.639
0.638
0.637
0.636
0.634
0.632
0.631
0.630
0.629
0.628
0.627
Isc(A)
8.972
8.959
8.936
8.912
8.875
8.830
8.805
8.787
8.775
8.695
8.615
8.535
