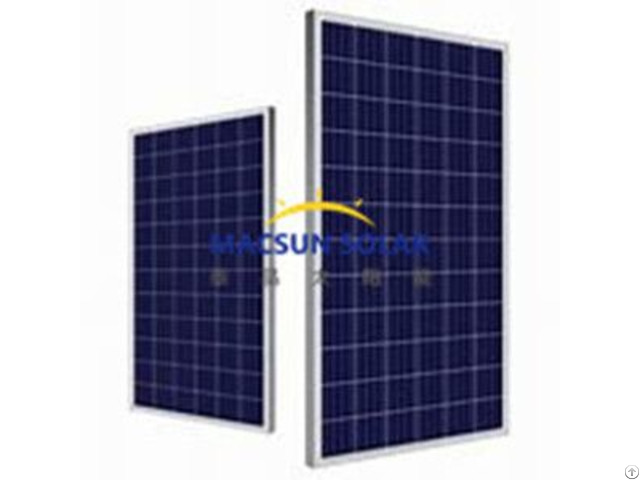

335w 72 Cell Poly Solar Module - China

PECIFICATIONS

Cell Poly

Weight 22kg±3%

Dimensions 1960mm×991mm×40mm

Cable Cross Section Size 4mm2

No.

of cells 72(6x12)

Junction Box IP67, 3 diodes

Connector MC4 Compatible(1000V) QC 4.10-35(1500V)

Packaging Configuration 27 Per Pallet ELECTRICAL PARAMETERS AT STC

TYPE MSM72S01-335/PR

Rated Maximum Power(Pmax) [W] 335

Open Circuit Voltage(Voc) [V] 46.70

Maximum Power Voltage(Vmp) [V] 37.83

Short Circuit Current(Isc) [A] 9.35

Maximum Power Current(Imp) [A] 8.87

Module Efficiency [%] 17.2 Power Tolerance 0~+5W

Temperature Coefficient of Isc(α_Isc)+0.058%/℃


Temperature Coefficient of Voc(β_Voc)-0.330%/℃


Temperature Coefficient of Pmax(γ_Pmp)-0.400%/℃

STC Irradiance 1000W/m2, cell temperature 25℃, AM1.5G
