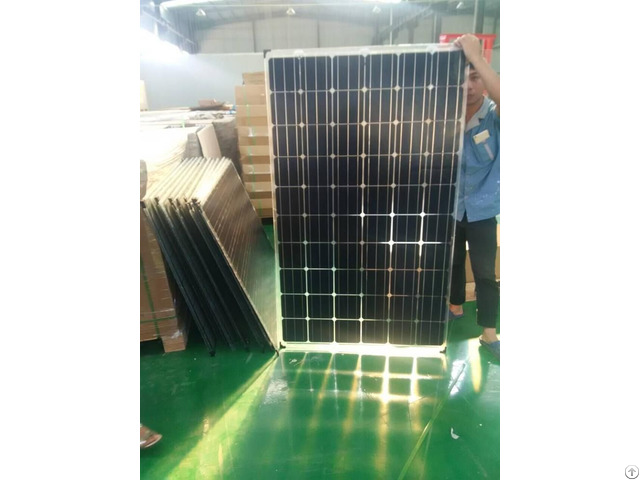

370w Bifacial Mono Double Glass Solar Module - China

MSM72D00 350-370/BP Series Introduction

Macsun Solar bifacial modules are assembled by high-performance PERCIUM cells and encapsulated by glass-glass panels, are capable of converting energy from incident lights on front and diffuse light, as well as reflected and scattered light on rear sides, which make them better reliability, superior low irradiance performance, and excellent energy generation performance.

3%~15%more energy generation

Superior low irradiance performance

Excellent temperature dependent performance

Lower LCOE Comprehensive Certificates

IEC 61215, IEC 61730, IEC TS 62804, IEC 61701, IEC 62716, IEC 60068-2-68ISO 9001: 2015 Quality management systems

ISO 14001: 2015 Environmental management systems

OHSAS 18001: 2007 Occupational health and safety management systems

IEC TS 62941: 2016 Terrestrial photovoltaic (PV) modules – Guidelines for increased confidence in PV module design qualification and type approv SPECIFICATIONS

Cell Mono

Weight 28.3kg±3%

Dimensions1987mm×992m m×6mm(1987mm×992mm×25m mwith junction box)

Cable Cross Section Size 4mm²

No.

of cells 72(6x12)

Junction Box IP68, 3 diodes

Connector QC 4.10-35

Packaging Configuration 30 Per Pall ELECTRICAL PARAMETERS AT STC

TYPEMSM72D00 MSM72D00 MSM72D00 MSM72D00 MSM72D00

-350/BP -355/BP -360/BP -365/BP -370/BP

Rated Maximum Power(Pmax) [W] 350 355 360 365 370

Open Circuit Voltage(Voc) [V] 47.48 47.66 47.84 48.15 48.44

Maximum Power Voltage(Vmp) [V] 39.59 39.76 39.96 40.25 40.53

Short Circuit Current(Isc) [A] 9.53 9.60 9.67 9.74 9.80

Maximum Power Current(Imp) [A] 8.85 8.93 9.01 9.07 9.13

Module Efficiency [%] 17.8 18.0 18.3 18.5 18.8

Power Tolerance 0~+5W

Temperature Coefficient of Isc(α_Isc) +0.060%/℃

Temperature Coefficient of Voc(β_Voc) -0.300%/℃

Temperature Coefficient of Pmax(γ_Pmp) -0.380% Backside Power Gain 5% 10% 15% 20% 25% Rated Max Power(Pmax) [W] 389 407 426 444 463 Open Circuit Voltage(Voc) [V] 48.4 48.4 48.4 48.5 48.5 Max Power Voltage(Vmp) [V] 40.53 40.53 40.53 40.63 40.63 Short Circuit Current(Isc) [A] 10.29 10.78 11.27 11.76 12.25 Max Power Current(Imp) [A] 9.59 10.04 10.50 10.96 11.4
