800w Complete Off Grid Polycrystalline Solar Power System - China

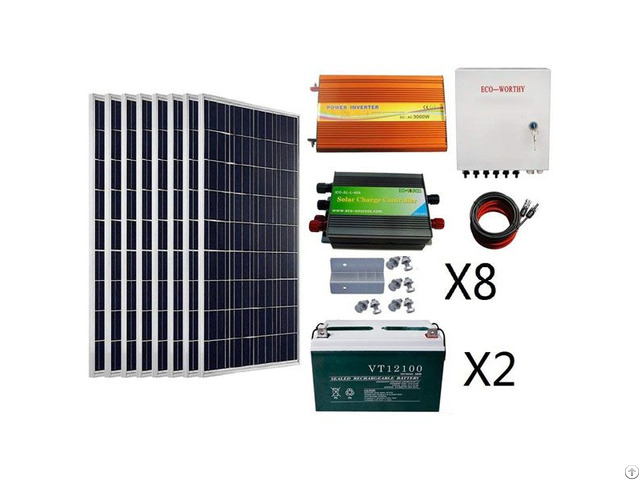

This Pre-package off-grid polycrystalline solar power system included: 8pcs 100W Polycrystalline Solar Panel +8 sets Z Style Mounting Kits +2pcs 100AH battery+1pc 45A Solar Controller +1pc 3000W 24V-110V Off Grid Pure Sine Wave Inverter +2pcs 16.4′ 12AWG Solar Cables (totally 32.8′) +1pc 6-String Solar Power Combiner Box.

Features

1 - Great for camping or remote cabins.

Power devices in remote backcountry locations.

2 - High-efficiency silicon solar cells ensure high performance of solar modules and create maximum power output.

25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate.

3 - Controller Connection: SOLAR for solar panels, LOAD for DC appliances, BATTERY for battery.

4 - Inverter Connection: DC port be connected with the battery, AC output be connected with AC appliances.

Specification

1 - 100AH Battery Normal Voltage: 12V

Rated Capacity(20hr): 100AH

Battery Cell Type: Lead Acid

Weight: 28kg(61.7lbs)

Battery Dimensions: 330mm x 175mmx190mm(13”*6.9”* 7.5”) 2 - 100W Poly Solar Panel Related power: 100W

Open circuit voltage (Voc): 21.6V

Max power voltage (Vpm): 18V

Short circuit current (Isc): 6.11A

Working current (Iop): 5.55A

Output Tolerance: ±3%

Temperate coefficient of Isc: (0.10+/- 0.01 )%/ ℃

Temperate coefficient of Voc: – (0.38 +/-0.01 )%/ ℃

Temperate coefficient of power Voc: -0.47%/℃

Temperature range: -40℃~+80℃

Frame: Heavy duty aluminum

Kind of connection: waterproof junction box, can be customized

SLA Battery Voltage: 12V

Size: 39.3*26.2*1.38in (996*665*35mm) 3 - 3000W 24V-110V Off Grid Pure Sine Wave Inverter Output voltage: 110V AC

Continuous power: 3000W

Surge power: 6000W

Waveform: Pure sine wave

Input Range: 21-30VDC

Working Input: 24VDC

Fuse: 35A

Low battery alarm: 10.5+0.3V

Over voltage shut down: 15.5+0.5V

Over load shut down: 3600W over 10 seconds

Over heating shut down: >75℃

Over Thermal Protection: shut down the output

Working Temperature: -10℃~+50℃

Frequency: 60Hz 4 - Solar Combiner Box Model: ECO—PV6

Input Circuits/Circuit Breakers: 6

Circuit Breaker Rating: 10A

Max Total DC Output Current: 60A

Max Input Voltage Rating: 250V

Max Output Voltage Rating: 250V

Protection Grade: IP65

Operational Environment Temperature: -30℃~+70℃

Relative Humidity: 0-95%

Cooling Method: Natural Cooling

Surge Lightning Protection: Yes

Dimensions: 10.3″x12.6″x4.5″ 5 - 45A Charge Controller Maximum Charging Current: 45A

Rated Voltage: 12V/24V

Charging Circuit Voltage: <200mv

Charge-Off Voltage: 13.7v/27.4v

Load Off Voltage: 10.5V/21V

Load On Voltage: 12.6V/25.2V

MAX Solar Panel: 540W/1080W
