Boost And Buck Wind Solar Hybrid Controller Model Msws B1 - China

price: 200.00 Dollar US$

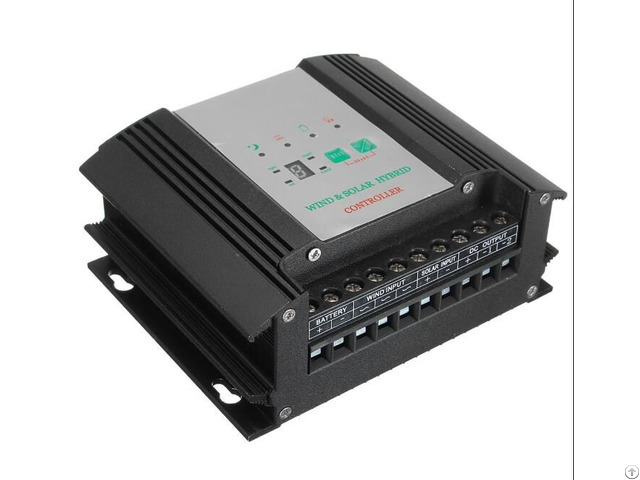

Boost And Buck Wind Solar Hybrid Controller Model Msws B1

Products Photos Catalog Boost Buck Wind Solar Photos Catalog

System voltage ：12V/24V

Turbine input voltage range: 0~100V Turbine input current range (initial value) : 0~25A

Turbine maximum input power : 350W/600W

PV input voltage range : 0~25V/0~50V

PV Input current range (initial value): 0~30A PV maximum input power1: 500W/1000W

PV MPP : 17~20V/34~40V

Number of output circuits: 2-channel or 1-channel with dimming signal Output control mode : Always open;light-controlled;lig ht on/pff

Maximum output current : 10A

Static power : 0.4W/0.8W

Communication interface : OPTIONAL

Operating temperature range : -20~+50

Operating humidity range: 35%~85% Specification：

1 - MPPT with boost and buck function.

2 - Internal turbine speed detection module.

3 - Automatically unloading function can achieve automatically unload the turbine when over voltage, over circuit, over speed.

4 - Solar reverse current protection, reverse polarity protection.

5 - Solar charging over current protection.

6 - Load over current, short circuit protection.

7 - Over temperature protection.

8 - Temperature detection can start turbine force heat dissipation.

9 - Optional single output circuit dimming interface.

10 - Optional utility power interface (DC).

Product size: 190.5*150*85.5m m

Package size: 233*182*130mm

Weight: about2.2Kg

EXW price：200

MOQ：300pcs

Capacity：80000pcs/mo nth


Company Contact:


  • Phone: 13530521249

  • Address: Xinweirun Industrial Park, Furong Path, Songgang Town, Baoan District., Shenzhen, Guangdong, China, Shenzhen , Guangdong , China

  • Email: Email


Published date: May 24, 2019

  • Business Description: MACSUN SOLAR owns production lines for solar cell, solar module, solar system and other solar application products.

    Technological innovation is essential to our position as a leading global renewable energy provider.

    Our R&D team focuses on the research and development of next generation PV technologies with a constant commitment to product quality and reliability as well as to cost structure optimization.

    With diversified customers base in the global PV market, Macsun Solar delivers its solar modules and PV solutions worldwide.
